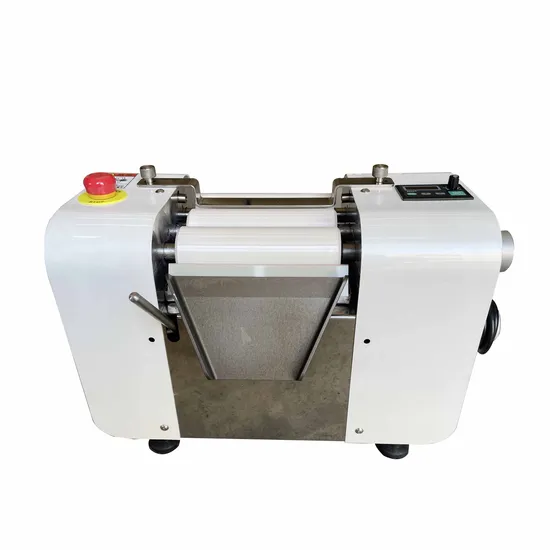

Lab-Scale Three Roller Mill Machine Featuring Zirconia, Stainless Steel, or Alloy Rollers

Product Description

Lab-Scale Three Roller Mill Machine Featuring Zirconia, Stainless Steel, or Alloy Rollers

Overview
This type is designed for manufacture who wanna achieve accurate dispersion control and production of fine particles. It supply customers effective and extremely accurate means of reducing particle size and dispersion, with significant reproducibility. As far as product R&D, small scale production and the establishment of small production lines. DS type three roller mill can provide flexible, precise control to meet your requirements, and process parameters will provide a rigorous technical basis for the expansion of reproduction.
Character
Low noise, long service life.
Siemens PLC control brings easy and visual operation.
Adopting manual gap adjusting.
Application
It is widely used in ink, coating, cosmetics, dispersing of nano particle material in electronic paste, and high value metal paste, new ceramic material, solar pasty, etc.

Configuration table
○Optional
Explosion-proof		○
Material of roller	Al2O3	○
	ZrO2	○
	SiC	○
	Superior Alloy	○
	Chromeplate	○
Material of blade	Al2O3	○
	ZrO2	○
	Staimless steel	○
	Alloy	○
	Chromeplate	○
Level sensor		○

Model	Superfine DS50	Superfine DS80	Superfine DS120
Roller diameter	50mm	80mm	120mm
Lenth of roller	150/160mm	200mm	450mm
Speed ratio	1:2:4	1:3:9	1:3:9
Output(L/h)	0.5~5	2~20	5~50
Motor power	0.12KW	1.5KW	3KW
Weight	23kg	75kg	380kg
Overall dimension(mm)	390*250*280	720*550*550	1060*810*1060
