2000bph-20000bph Mineral Spring Water Filling Machine for 500ml Pet Bottle

Product Description

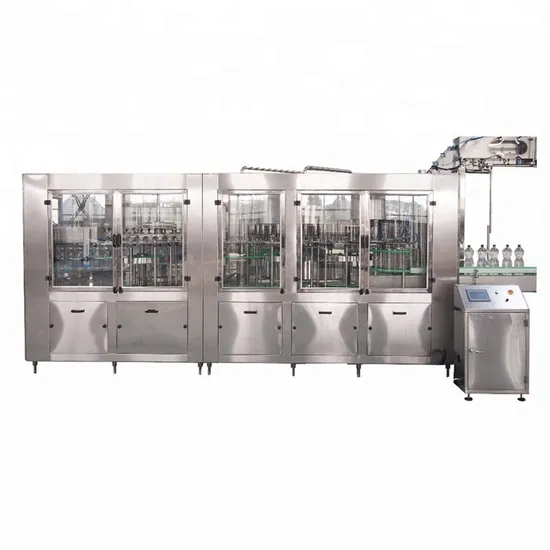

Pet Bottle Drinking Mineral Water Filling Machine
Full Automatic Plastic Bottle Water Filling Machine for PET bottles integrates the functions of rinsing, filling, and capping together. Based on advanced technology overseas and designed according to the filling processing demands of mineral water, pure water, etc.
Working process:
Bottles are fed from the air conveyor into a three-in-one rinsing machine via star-wheel. A bottle clamp installed on the rotary wheel of the rinsing machine will grip the bottle mouth and make a 180º turn along a guide track to face the bottle mouth downward.
In the designated section of the rinsing machine rinsing, water will jet out from special nozzles to flush the bottle inside the wall. After rinsing and dripping, bottles gripped by bottle clamp will make another 180º turn along a guide track to resume bottle mouth facing up.
Cleaned bottles are moved out of the rinsing machine by star-wheel. After entering the fill area, bottles are retained by neck supporting carrier plates which are actuated by the bottle carrier mechanism to raise them to engage with filling valves.
The filling is completed by gravity. The material is filled into the bottle through the filling valve. The bottle goes down and leaves the valve to the capping machine via neck-handling star-wheel.
Anti-rotation blades on capping heads will seize the neck of the bottle to prevent it from rotating and hold it upright. The twist-on capping head will make revolving and rotating movements along with the machine to finish the complete capping process of cap picking, placing, twisting, and disengaging under the control of a cam.
Main features:
1. This machine has a compact structure, perfect control system, is easy to operate, and is highly automated.
2. Only by changing the star-wheel, the arch board can realize the fill bottle shape change
3. The parts in contact with the product are made of quality SUS, anti-corrosive, and easy to clean.
4. Rapid flow, highly filling precision, nicety liquid level without any liquid loss to satisfy the filling process demand.
5. The capping head adopts a constant torque magnetic device to guarantee capping quality and impact cap.
6. This machine has a high efficient cap arranging system, perfect cap feeding with self-control, and a self-protection device.
7. The machine adopts a perfect overload protective device that can ensure the operator and machine safety
8. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop, production counting, etc.
9. The main electric and air-driven components are world-famous brand products. 10. All control is advanced touch-screen operation and realizes people-computer dialogue operation.
Detailed Photos
Product Parameters

No.	Model	Machine name	Production capacity	Power (kW)	Low-pressure air consumption 0.8MPa (Nm3/min)	Using range
1	XGF14-12-5	water filling machine	5000BPH (500ml)	1.78	0.8	350ml-2000ml (PET bottle)
2	XGF16-16-5	water filling machine	8000BPH (500ml)	2.5	0.8
3	XGF24-24-6	water filling machine	12000BPH (500ml)	3.18	0.8
4	XGF24-24-8	water filling machine	13000BPH (500ml)	3.18	0.8
5	XGF24-24-8K	water filling machine	15000BPH (500ml)	4.18	0.8
6	XGF32-32-8	water filling machine	15000BPH (500ml)	5.07	0.9
7	XGF32-32-10K	water filling machine	18000BPH (500ml)	5.87	0.9
8	XGF40-40-10	water filling machine	18000BPH (500ml)	5.87	0.9
9	XGF60-40-15K	water filling machine	24000BPH (500ml)	9.05	0.9	350ml-1000ml (PET bottle)
10	XGF50-50-12	water filling machine	22000BPH (500ml)	9.05	1
11	XGF60-60-15	water filling machine	24000BPH (500ml)	12.2	1
12	XGF72-50-18K	water filling machine	30000BPH (500ml)	12.2	1
13	XGF84-60-20K	water filling machine	36000BPH (500ml)	15	1
14	XGFH12-12-4	water filling machine	1200BPH (5L)	4.05	0.8	96Π (PET bottle)
15	XGFH12-12-4G	water filling machine	1500BPH (5L)	4.05	0.8
16	XGFH12-12-4L	water filling machine	2400BPH (5L)	4.05	0.8
17	XGFH12-12-4	water filling machine	1200BPH (5L)	4.05	0.8	110Π (PET bottle)
18	XGFH12-12-4G	water filling machine	1500BPH (5L)	4.05	0.8
19	XGFH12-12-4L	water filling machine	2400BPH (5L)	4.05	0.8
20	XGFH16-16-4	water filling machine	2000BPH (5L)	4.85	0.8	72Π (PET bottle)
21	XGFH16-16-4G	water filling machine	2500BPH (5L)	4.85	0.8
22	XGFH16-16-4L	water filling machine	4000BPH (5L)	4.85	0.8
23	XGFH16-16-4	water filling machine	2000BPH (5L)	4.85	0.8	96Π (PET bottle)
24	XGFH16-16-4G	water filling machine	2500BPH (5L)	4.85	0.8
25	XGFH16-16-4L	water filling machine	4000BPH (5L)	4.85	0.8
26	XGFH16-16-4	water filling machine	2000BPH (5L)	4.85	0.8	110Π (PET bottle)
27	XGFH16-16-4G	water filling machine	2500BPH (5L)	4.85	0.8
28	XGFH16-16-4L	water filling machine	4000BPH (5L)	4.85	0.8

Packaging & Shipping
Installation Instructions We provide technology training for free, which contains the operation and maintenance training of the machine in the customers' factory.
After Sales Service 7*24 Online Service
if you have any problem with our product, you can inform us by Email, we will reply to you at once when we get it and offer you a good solution to solve the problem.
Company Profile China's high-end liquid(beverage) packaging machinery R&D and manufacturing base, is committed to building smart factories with turnkey solutions for liquid(beverage) companies. Since its founding, LiDLi, under the concept of "Driving development through innovation and winning the market with quality", has been providing global customers in the five fields of beverages, dairy, liquors, condiments, and daily chemical products with complete sets of intelligent equipment, including pretreatment system, combi block, blowing system, filling system, secondary packaging system, etc., realizing the dream of "Made in China, Made for World".

From the support of the formulation process, the three-dimensional design of the product container, to the overall layout of the users' factory, from the R&D and design of core equipment, the installation and commissioning of engineering projects, to the end customer professional training, LiDLi has more than production lines in more than countries and regions around the world.

By adhering to high-end positioning, technological innovation, forward-looking layout, its advanced technologies. LiDLi will continue to enhance its design creativity, product quality, and brand reputation to become a widely respected global leading supplier of liquid packaging solutions.
Our Advantages 1. We have a professional bottle shapes design team and manufacturing service according to customers' requirements.
2. We can provide you with production technology and beverage formulation.
3. We can provide you with a professional factory layout according to your final equipment list.
4. We provide technology training for free, which contains the operation and maintenance training of the machine in the customers' factory.
5. We guarantee all our machines, parts for two years. After the warranty, we also can offer you the parts for replacement at our bottom price.
