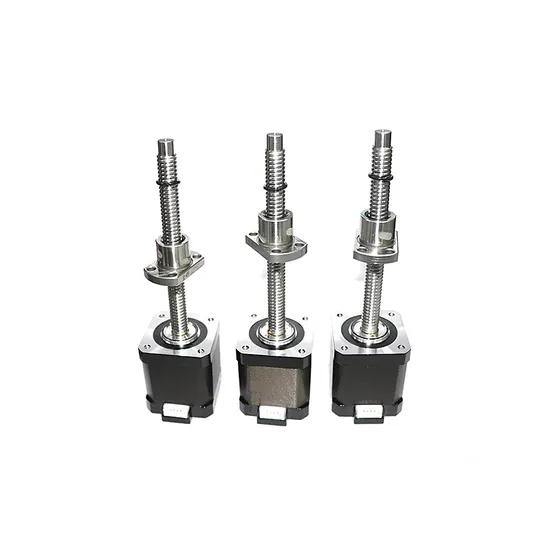

Kgg Small Screw Motor High Speed Stepper Motor Gssd Series

Product Description

FEATURES OF SCREW MOTOR DIRECT CONNECTION
Transmission upgrade, simple structure
A 2-phase stepping motor is directly installed on the shaft end of the ball screw, and the ball screw axis is used as the ideal structure of the motor rotation axis.
Compact and compact
Two-phase stepping motor and rolled ball screw integrated product, through the integration of the motor shaft and the ball screw shaft, no coupling is needed, saving the size of the long side direction.
High precision, high stability, excellent cost performance
The combination of rolling ball screw and 2-phase stepping motor saves the coupling, and the integrated structure reduces the combined accuracy error, and can make the repeated positioning accuracy ± 0.001mm.
Multiple shaft ends can be customized
Provide a variety of shaft end shapes and stroke specifications, and non-standard products can be customized according to customer requirements.
Application: Medical industry,Lithium battery industry,Solar photovoltaic industry,Semi conductor Industry,General industry machinery,Machine tool,Parking system,High-speed rail and aviation transportation equipment,3C industry etc
Rich products, complete specifications
The motor specifications are 20, 28, 35, 42, 57 stepping motors, which can be matched with ball screws and resin sliding screws.
Motor Specification

Motor Frame Size	Motor Model	Rated Voltage (V)	Rated current (A)	Winding lmpedance (O)	Coefficient of Mutual lnduction (mH)	Maximum Static Torque (N.m)	Motor Specifications (mm)
20	8E2004	3.52	0.4	8.8	2.8	0.003	20
	8E2105	2.55	0.5	5.1	1.5	0.0036	27.2
28	11E2110	2.1	1	2.1	1.5	0.036	33.35
	11E2216	2.4	1.6	1.5	1.36	0.052	45
35	14E2110	3.5	1	3.5	3.6	0.06	33.6
	14E2215	4.05	1.5	2.7	3.2	0.1	45.6
42	17E2115	2.8	1.5	1.85	2.2	0.18	34.1
	17E2225	2.25	2.5	0.9	1.8	0.32	48.1
57	23E2110	6.4	1	6.4	1.65	0.7	45
	23E2225	5	2.5	2	5.2	1.5	65

Product Index

Motor Specifications	Model	Total Length of Motor	Rated current (A)	Maximum Static Torque (N.m)	Dia. (mm)	Lead (mm)	Reference Thrust (N)
20	GSSD20-R0401-M1	20	0.4	0.003	4	1	10
	GSSD20-R0401-M2	27.2	0.5	0.0035	4	1	15
	GSSD20-R0401K-M1	20	0.4	0.003	4	1	10
	GSSD20-R0401K-M2	27.2	0.5	0.0035	4	1	15
	GSSD20-R0402-M1	20	0.4	0.003	4	2	5
	GSSD20-R0402-M2	27.2	0.5	0.0035	4	2	7
28	GSSD28-R0504-M1	33.35	1	0.036	5	4	20
	GSSD28-R0504-M2	45	1.6	0.052	5	4	40
	GSSD28-R0504G-M1	33.35	1	0.036	5	4	20
	GSSD28-R0504G-M2	45	1.6	0.052	5	4	40
	GSSD28-R0601-M1	33.35	1	0.036	6	1	110
	GSSD28-R0601-M2	45	1.6	0.052	6	1	150
	GSSD28-R0601K-M1	33.35	1	0.036	6	1	110
	GSSD28-R0601K-M2	45	1.6	0.052	6	1	150
	GSSD28-R0602-M1	33.35	1	0.036	6	2	50
	GSSD28-R0602-M2	45	1.6	0.052	6	2	12
	GSSD28-R0602G-M1	33.35	1	0.036	6	2	50
	GSSD28-R0602G-M2	45	1.6	0.052	6	2	150
	GSSD28-R0606-M1	33.35	1	0.036	6	6	18
	GSSD28-R0606-M2	45	1.6	0.052	6	6	35
	GSSD28-R0610-M1	33.35	1	0.036	6	10	10
	GSSD28-R0610-M2	45	1.6	0.052	6	10	15
35	GSSD35-R0801-M1	33.6	1	0.06	8	1	175
	GSSD35-R0801-M2	45.6	1.5	1	8	1	230
	GSSD35-R0801K-M1	33.6	1	0.06	8	1	175
	GSSD35-R0801K-M2	45.6	1.5	1	8	1	230
	GSSD35-R0802-M1	33.6	1	0.06	8	2	85
	GSSD35-R0802-M2	45.6	1.5	1	8	2	160
	GSSD35-R0805-M1	33.6	1	0.06	8	5	35
	GSSD35-R0805-M2	45.6	1.5	1	8	5	65
	GSSD35-R0810-M1	33.6	1	0.06	8	10	15
	GSSD35-R0810-M2	45.6	1.5	1	8	10	30
42	GSSD42-R1002-M1	34.1	1.5	0.18	10	2	184
	GSSD42-R1002-M2	48.1	2.5	0.32	10	2	306
	GSSD42-R1002K-M1	34.1	1.5	0.18	10	2	184
	GSSD42-R1002K-M2	48.1	2.5	0.32	10	2	306
	GSSD42-R1005-M1	34.1	1.5	0.18	10	5	75
	GSSD42-R1005-M2	48.1	2.5	0.32	10	5	15
	GSSD42-R1010-M1	34.1	1.5	0.18	10	10	40
	GSSD42-R1010-M2	48.1	2.5	0.32	10	10	83
	GSSD42-R1015-M1	34.1	1.5	0.18	10	15	27
	GSSD42-R1015-M2	48.1	2.5	0.32	10	15	50
	GSSD42-R1020-M1	34.1	1.5	0.18	10	20	22
	GSSD42-R1020-M2	48.1	2.5	0.32	10	20	41

Technical Drawing
Specification List
