Single Stage Single Suction Chemical Water Centrifugal Pump Ihf80-65-125 Explosion-Proof VFD Double Mechanical Seal Plan21+54 Fluoroplastic Alloy Tkg/Tkw
| US$100.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
IHF80-65-125
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
Middle Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Horizontal Split Pumps
Mounting Height
Suction Centrifugal
Impeller
Closed
Usage
Pump, Pumps, Circulating Pump
Accept OEM or Not
Yes
Material
Fluoroplastics
Feature
Corrosion Resistance
Frequency
50/60Hz
Transport Package
Plywood Casing
Specification
IHF
Trademark
ATACH
Origin
China
HS Code
8413709990
Production Capacity
5000unit/Year
Product Description

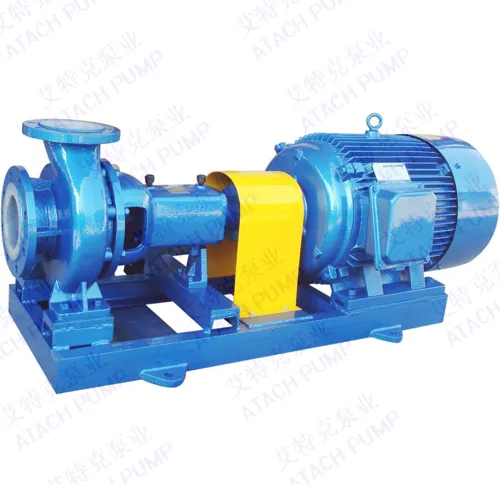

- Name of pump: Single stage single suction chemical centrifugal pump
- Pump Type: Centrifugal Pump
- Pump model: IHF80-65-125
- Pump brand: ATACH
-Installation Type: horizontal coupling
- Impeller Quantity: 1 pcs
- Rated pump capacity: 50 m3/h
- Rated pump head: 20 m
- Power/speed:5.5 Kw/2900 r.p.m
- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )
- Material Supply: Steel lined fluoroplastics
- Shaft Seal: Mechanical seal
- Inlet / outlet : 80mm*65mm
If you need other specifications or parameters of IHF Fluoroplastic pump, please contact us in detail.
