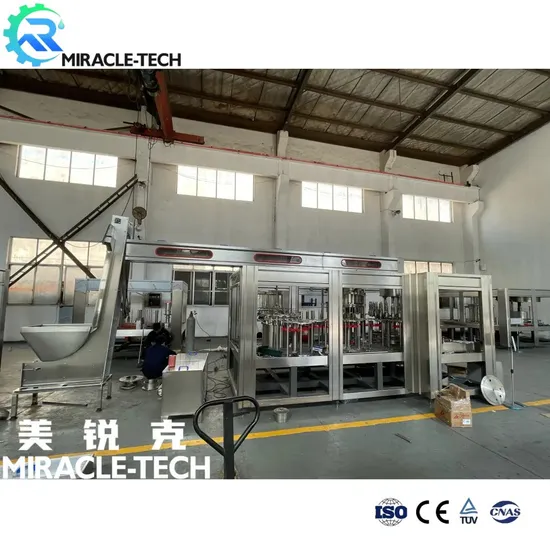

Miracle-Tech 3 in 1 Automatic Advanced Water Rinsing Filling Capping Machine Bottling Line with Printing Labeling PE Film Shrink Wrapping

Product Description

Automatic Drinking Pure / Mineral Water Filling Machine ( For PET Bottle or Glass Bottle )
Description :
*Miracle-Tech Machine Co., Ltd which represents "Reliable & Advanced Liquid Packaging Solutions" we're professional manufacturer and supplier located in Zhangjiagang City, Jiangsu Province, China. East of China and near to Shanghai.
We're focused on providing complete solution, including Water treatment system / Washing filling capping 3 in 1 machine / Automatic Labeling Machine / Code printer / Automatic packing machine / Automatic palletizing system / Injection molding machine / PET Bottle blowing machine / Extrusion blow molding machine.

Technical Parameter : Water Bottling Machine
Model	CGF8-8-4	CGF14-12-5	CGF16-16-5	CGF24-24-8	CGF32-32-10	CGF40-40-12	CGF50-50-15
Capacity (for 500ml )	3000	4500-5000	7000-8000	10000-12000	14000-16000	18000-20000	24000
Suitable bottle shape	PET circular or square
Bottle diameter	φ40-φ120
Bottle height	150-350mm
Compressor air	0.25-0.7Mpa
Washing medium	Aseptic pure water
Washing pressure (Mpa)	>0.05Mpa <0.25Mpa
Power	4KW	4.5KW	5KW	5.5KW	6.2KW	7.4KW	8.8KW
Dimension (LxW)	2.25*1.8m	2.48*1.8m	2.75*2.15m	3.05*2.48m	3.64*2.75m	4.75*3.2m	5.35*3.8m
Height	2.15m	2.25m	2.5m	2.5m	2.5m	2.6m	2.8m
Weight	3000KG	3500KG	4000KG	4800KG	6500KG	8000KG	10000KG

Machine Details :
*Process Flow of Water Treatment System :
Raw water input -> Raw water pump -> Silica sand filter -> Active carbon filter -> (Manganse sand filter) -> Sodium ion exchanger -> Precision filter -> Reserve osmosis (RO) -> UV sterilizer -> (Ozone generator) -> Pure water tank -> Pure water output
We will help customers to design and provide the best suitable scheme according to the raw water analysis report and water standard data.
*Main Features of Water Bottling Machine :
1) Adoption of the technology of direct connection between the wind conveying channel and the moving wheels inside the bottle; elimination of the spiral and conveying chain, which makes the bottle shape change easier.
2) Bottle shape transfer adopts bottle neck clamping technology; bottle shape changeover does not require adjusting the level of the machine, but only replacing the relevant curved plates, wheels and nylon parts.
3) High-speed large gravity flow valve filling valve, fast filling speed, accurate filling, no liquid loss.
4) The mainframe adopts advanced PLC automatic control technology, and the key electrical components are selected from Japan Mitsubishi, Omron and other well-known companies.
5) Screw down when discharging bottles, no need to adjust the height of the conveyor chain for remodeling bottle shape.
6) Special designed stainless steel bottle washer clamps are strong and durable, no contact with bottle neck screw position to avoid secondary contamination.
Main Configuration List :
Introduction of Labeling Machine :
*We're able to provide our customers the specialized labeling machine according to the different kinds of label. Such as Automatic sleeve shrink labeling machine for PVC labels, Automatic single/double sides sticker labeling machine for self-adhesive labels, Hot glue labeling machine for OPP labels etc... Looking forward to your consulting !
Introduction of Packing Machine :
*Packaging Machine, we have various kinds of options. It has L type PE film shrink wrapping machine, linear type PE film shrink wrapping machine and piece type carton packaging machine.
Introduction of Conveyor System :
*Installation layout, machine connection details will be provided by our professional engineer team who has over 15 years experience in this water & beverage bottling business.
The whole conveyor system equipped with motors & belt with famous brand and automatic lubricant system. Less power consumption, smaller installation space required and less maintenance.
Introduction of PET Bottle Blowing Machine :
*This machine is fully automatic servo electric PET bottle blowing machine, with lower power consumption but bigger blowing capacity and higher mechanization and automation. It's widely in food, beverage, cosmetic, pharmaceuticals industry etc... over the world.
Introduction of Injection Molding Machine :
*It's our injection molding machine, used to produce PET preforms, PE caps and other plastic products. We have multipe kinds of machine model for you to choose. Injection molding machine has been used in many different industry. Advantages : Easy operation, less maintenance and longer operation lifetime.
Turnkey Project Solution & Layout :
Introduction of Zhangjiagang Miracle-Tech Machine Co., Ltd :
Miracle-Tech Co., Ltd as manufacturer who provides liquid bottling packaging solutions from raw material to filling bottling to final selling, A to Z turnkry project. It's Known for developing innovative high-end products and new technologies.
Company Information :
Miracle-Tech Machine Co., Ltd is...
*More than 18,000 square meters of standardized factory workshop.
Different types of processing equipments such as water jet cutting machine, plasma cutting machine and laser cutting machine, as well as CNC machine tools from Taiwan and Daewoo of Korea ensure the precision of parts.
*International certifications, national equipment verification certificates, more than 30 invention patents
Equipment verification certificate: ISO9001:2001; CE certificate , SGS , COC , TUV...
National equipment verification certificates: CNCA certificate, Logo trademark registration, etc.
*The equipment will be tested and run for 24 hours before leaving the factory to ensure smooth working of the water lines and pneumatic, electrical and mechanical stability.
*Sufficient stock of spare parts to ensure timely delivery and supply of spare parts.
*Experienced engineers. We can produce products with different capacities and make reasonable flow charts according to customers' requirements to save space.
*Professional installation team, over 15 years of overseas installation experience, can help customers realize the benefits in the shortest time.
