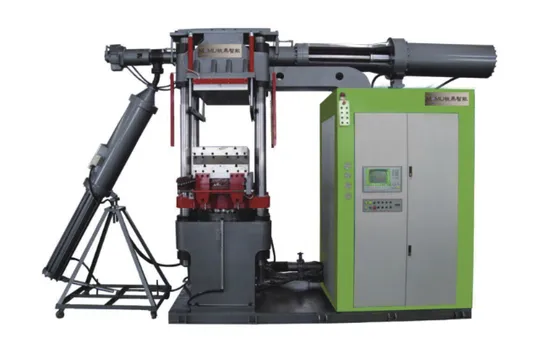

Specialized Silicon Molding Machine for Energy Industry Composite Insulation Molding Machine 10kv Transformer Making Machine

Product Description

Specialized silicon molding machine for energy industry Composite Insulation molding machine 10KV transformer Making machine
1.Features Introduction:
1, can be installed in different types of mold, especially suitable for molding complex structures and diverse products;
2, countertops big, big hot plate area, can ensure better mold heated hot plate temperature uniformity;
3, hot plate and mold with the launch of the machine in front, make molds and hot plate after you take the products without
temperature, mold temperature again reduce the time;
4, the outflow channel design, runner only in the uppermost surface of the mold design, the machine comes with half of the mold
flow channel for customers to save the cost of a layer of mold;
5, the hydraulic motor torque, can guarantee fast high hardness rubber feed, reasonable screw design, suitable for different
rubber;
6, injection speed, injection pressure is high, can reach 1800kg / f-3000kg / f, the finished product is high quality, flash and
even less, for a variety of sophisticated finished products;
7, rapid clamping and rapid tooling, improve production efficiency;
8, the machine fully functional, optional hanging down power module, the former top agency, under shoot, thimble, left and right
side of the mold, saving variable pump, hydraulic servo system, electric eye safety, international brands and touchscreen
controllers.
2.Application:
Multilateral, polygonal and other complex products, especially sports supplies, automotive supplies, electronic
supplies, electrical insulators and other industries.

Type	TRZ-200	TRZ-250	TRZ-400	TRZ-600
Clamping force(Ton)	200	250	400	600
Volume mjechon(cc)	10000	130000	130000	150000
Heating plate size(mm)	800*1600	1250*2600	1500*3000	1800*3500

the machine have different open mold way : as 2RT/3RT/4RT OR using Upper and lower lifter part , suiting for different kinds of mold. 3.Main machine parts :
Casting using the Nodular Cast iron , Electrical element,using good quality parts ,longer using life , 4.Testing Four column force must be the same , then prootect the machine using life 5. products and mold
6.Exhibition2024Germany DKT Expo
Chinaplas Exhibition RubberTech exhibtion
6.PACKAGE
7.LOADING AND SHIPPING
8. our facotry
