Electrostatic Manual Powder Coating Machine for Alloy Wheel Sale

Product Description

Electrostatic manual powder coating machine for Alloy wheel sale
KF-X1 powder coating machine is optimized perfection of functions and precision on the original basis, intelligent powder gun controller offers more precise powder output and adjustment of parameters to ensure an optimum powder coating result. Specially suits for spraying aluminium profile, powder coated aluminium profile features better corrosion resistance, excellent mechanical performance, impact resistance and flexibility.

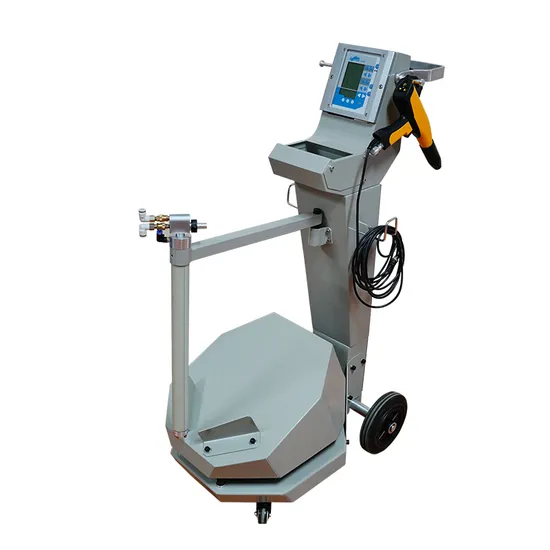

Powder Gun Controller of KF-X1 Aluminium Profile Powder Coating Machine
1. Three preset standard programs:
Flat parts program is ideal for spraying panels and flat parts.
Complex parts program is designed for some parts with complex shapes and deep corners.
Recoat program is optimized for parts which have already been coated.
2. Support to store coating programs up to 20, features convenient to spray the same type products next time.
3. Digital air flow technology for more accurate pneumatic data setting, ensures better atomization.
4. The precise powder output is able to control the thickness of coating film, results a consistent powder coating effect.
5. Voltage and current could be adjusted flexibly ( Voltage 0-100kV, Current Max.180μa ).
COLO-08 Powder Coating Spray Gun
1. Only 500g powder gun body maintains all practical functions, ergonomical design is able to reduce operators' fatigue from working long hours.
2. 100 kV manual spray gun maximizes powder charging capacity meanwhile ensures safe operation and efficiency during long lasting use.
3. Nozzles are made of non-stick materials, professionally designed to minimize powder accumulation as well as enhance penetration ability. Technical Specifications of KF-X1 Powder Coating Machine

Voltage	AC 220V / 110V
Frequency	50-60Hz
Power	50W
Output Voltage	DC24V
Max Voltage	0-100 KV adjustable
Max Powder Injection	600 g/min
Max input air pressure	10 kg/cm
Optimum input-air pressure	6 kg/cm
Minimum input-air pressure	4 kg/cm
Maximum water vapor content or compressed	1.4 g/Nm3
Maximum oil vapor content of compressed air	0.1 ppm
Maximum compressed -air consumption	13.2 m3/h
Temperature Range in Use	-10 ºC-50 ºC
Gun Weight	500g
Maximum Output Current	180μA
Polarity	negative

How to install the KF-X1 Aluminium Profile Powder Coating Machine?
Application area
COLO powder coating machine can be used for Metal or Glass CupCOLO powder coating machine can be used for Any Metal or Glass you wantCOLO powder coating machine can be used for HubCOLO powder coating machine can be used for FurniturCOLO powder coating machine can be used for Metal RailCOLO powder coating machine can be used for Metal productsCOLO powder coating machine can be used for Glass products
Packaging and Loading:

PACKAGING	Carton/Wooden package
MOQ	1pc/model
DELIVERY TIME	1-3 working days after deposit receive

Company Profile
Please contact us NOW to get the latest powder coating product catalog and price. Welcome to send an inquriy to us.
