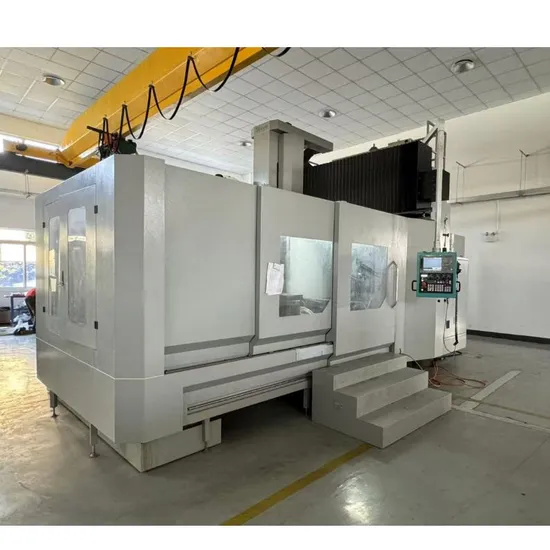

3 Aix Gantry Machining Center Sk2518, 8000kg, Customization Available

Product Description

Product Description
Product Parameters

Item	Unit	SK-2518
Travels
X-axis	mm	≤2500
Y-axis	mm	≤1800
Z axis	mm	≤800
C axis		nX360°(∞)
Gantry dimension
Distance from spindle end to rectangular table surface	mm	540-1340
Distance from spindle end to rotating table surface	mm	180-980
The distance between the columns	mm	≤1800
VDI/DGQ 3441(ISO230)
Positioning (X,Y,Z)(ISO230-2total travel)	mm	P ≤ 0.02
Repeatability(X,Y,Z)(ISO230-2total travel)	mm	Ps ≤ 0.018
Rotary shaft positioning accuracy	"	P ≤15
Rotary shaft repeated positioning accuracy	"	Ps ≤ 8
Worktable
Spindle motor	Kg/m2	≤2500
X/Y/Z axis motor	mm	≤Φ800
B/C axis motor	rpm	≤13
X/Y/Z axis rapid speed	mm	≤880
Origin of rotary table		Original production in Taiwan or imported from Europe
Spindle
Spindle power	kw	≤15/18
Minimum spindle speed	rpm	≤80
Maximum spindle speed	rpm	≤6000
Machine weight	N.m	≤189
Water tank capacity		Bt50
Main shaft external nozzle cooling, pump flow	L/min	≤25
Cooling tank capacity	L	≤250
Machine tool spindle taper hole with blowing pack
The spindle has a directional function
Tool magazine
Tool storage capacity	mm	≤24
Maximum tool weight	kg	≤15
Maximum tool length	mm	≤350
Tool change time	S	T-T≤5S,C-C≤7S
Tool selection mode		Select the knife randomly
Basic parameters
X\Y\Z axis fast speed	m/min	≤12/12/12
X\Y\Z maximum machining movement speed	mm/min	≤5-10000
Machine covers an area of approx	mm	7000*4600
Machine height	mm	3500
Machine weight	T	27.5

Standard proximity and function
1.FANUC 0i-MF Plus(5) control system		11. Work light
2.BT50-190-6000rpm belt spindle		12. Warm light
3.Main shaft cooling system		13.Transformer
4.Spindle blushing		14.Water gun
5.Cutting coolant system		15.Air gun
6.Hiron disk and water tank		16.Rigid tapping
7.Automatic lubrication system		17.Manual knife release device
8.Oil cooler		18.24T knife arm tool library
9.Transformer		19.Spiral chip extractor
10.Handwheel		20.Chain chip extractor

Detailed Photos
ASSEMBLY PROCESS
Company Profile
Packaging & Shipping
Certifications
FAQ
Q1: How is the warranty?
A1: Warranty time is 12months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 quality management system. ISO14001 Environmental Management System and OHSAS18001 International Occupational Health and Safety Management System. Most products have passed European and American safety standards certification, including CE, GS, EMS&UL. 90% of the products are exported to more than 60 countries and regions worldwide and have always won a high reputation. Therefore, you can rest assured of our high-quality products and the best service.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
