Adjustable Lift Platform with Sturdy Lifting Stage for Construction Projects

Product Description

Product Description

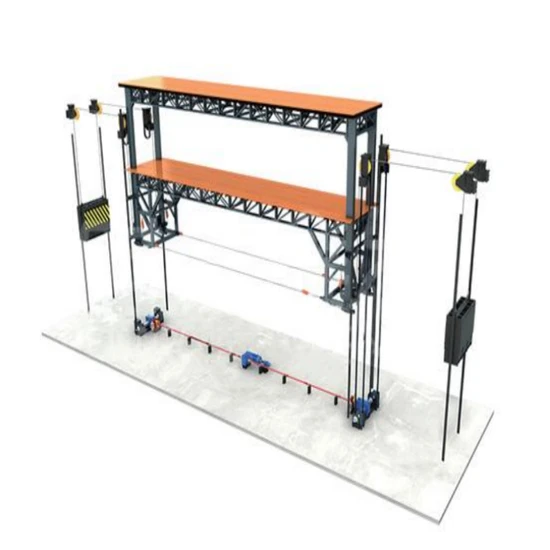

The primary centerpiece of the main stage is a versatile lifting platform that can be configured as either a single or double-deck.
This dynamic platform enhances stage versatility, allowing for seamless transformations into various height levels, creating distinct planes.
This capability enables the entire stage to fluidly transition between flat surfaces and tiered formations; with exceptional elevation capabilities.
The main lifting platform boasts a remarkable maximum height extension of up to 10 meters above the stage floor. It can be used in conjunction with
additional lifts to create tiered steps, thereby enriching performance possibilities and meeting diverse event requirements.
Constructed from a robust combination of steel frame, wooden flooring, and encircling decorative panels, the platform integrates seamlessly with its
advanced driving mechanism, transmission system, and strategically placed peripheral anti-shearing protection devices, including both lifting and fixed platforms.
It also features a comprehensive signaling system for entrance doors, state-of-the-art electrical equipment, and an intuitive control system. The elevator is designed to operate
either independently or in perfect harmony with other systems. Its movement is intelligently synchronized with the opening and closing of entry and exit doors or entrances.
To ensure maximum safety, the elevator is immobilized when the entry or exit doors are open. The robust drive mechanism utilizes rigid chains, screws, or chains.
This platform's design can be tailored to specific requirements, allowing for the creation of circular or uniquely shaped platforms to cater to bespoke needs.
The rigid chain, screw, or chain drive mechanism ensures precise and reliable movement, enhancing the functionality of the lifting platform.
Overall, the Adjustable Lift Platform with Sturdy Lifting Stage is an epitome of innovation, designed to elevate performances and adapt to varying event demands.
Lifting platforms can be custom-engineered to accommodate circular or other specific configurations, ensuring a perfect fit for any venue.
Detailed Photos
Product Parameters

DYN Load-Pitch of Chain Link
model		07A	11A	15A	19A	23A	27A	31A		35A	39A	47A	53A	63A	71A	77A
trip (m)		DYN Load (kN)
0		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
0.30		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
0.50		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
0.80		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
1.00		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
1.20		4.3	12	25	39	57	78	98		134	173	222	280	360	450	650
1.40		3	9	25	39	57	78	98		134	173	222	280	360	450	650
1.60			7	25	39	57	78	98		134	173	222	280	360	450	650
2.00			4	17	39	57	78	98		134	173	222	280	360	450	650
2.50				11	26	57	78	98		134	173	222	280	360	450	650
3.00					18	55	78	98		134	173	222	280	360	450	650
3.50						40	78	98		134	173	222	280	360	450	650
4.00						30	78	98		134	173	222	280	360	450	650
4.50						23	63	98		134	173	222	280	360	450	650
5.00							50	82		134	173	222	280	360	450	650
5.50							40	67		134	173	222	280	360	450	650
6.00							33	55		118	173	222	280	360	450	650
6.50								46		99	159	222	280	360	450	650
7.00								38		84	136	202	280	360	450	650
7.50										72	117	173	280	360	450	650
8.00										62	101	150	280	360	450	650
8.50										53	88	131	258	360	450	650
9.00											76	115	226	360	450	650
9.50												99	200	360	450	650
10.00												80	178	330	450	650
10.50													159	295	450	650
11.00													142	265	450	650
11.50													127	240	450	650
12.00														220	450	620
12.50														195	420	580
13.00														180	390	540
13.50														165	360	500
14.00															330	460
14.50															300	420
15.00															280	380
16.00															260	345
	Please call us for confirmation when selecting model of this color parameters.								The color or above parameters can be selected according to the design.

Certifications
Packaging & Shipping
Company Profile
Project:SHANGHAI EAST CHINA NORMAL UNIVERSITY Marvel at our comprehensive installation featuring a robust double-deck stage steel structure with fence top. This includes 45 dynamic lifting booms, 9 synchronous receivers, an efficient movable counter set, 4 versatile lifting stages, and 2 sets of
orchestra lifting platforms. Additionally, a sophisticated lifting railing set complements the ensemble, alongside a steel fire curtain and 45 sets of lifting booms, engineered for unmatched performance..
Project:Shanghai Wild Animal Park Discover a similar setup at this exotic location, including a double-deck stage steel structure with a fence top, 45 robust lifting booms, 9 advanced synchronous receivers, a movable counter set, 4 adaptable lifting stages, and 2 orchestral lifting platforms.
Experience the seamless integration of our lifting railings, a reliable steel fire curtain, and 45 additional sets of lifting booms, all designed to enhance functionality and aesthetics.
Project:Hengdian Film and Television Qinhuai Eight Beauties Theater Behold the impressive stage setup featuring a top-tier stage steel structure with a fence top. This includes an unprecedented 46 stage boom sets, 5 front single-point stages, a steel fire curtain, and an orchestra lifting platform, all meticulously engineered.
Enhance your production with 2 versatile platform sets and 2 compensation platforms, assuring an unparalleled performance environment.
1. Company Overview
Founded in 2014, Wanying Technology (Taizhou) Co., Ltd. stands as a beacon of industrial manufacturing excellence in the picturesque city of Taizhou. Since our inception, we have embraced the core values of "customer first, innovation, integrity, optimism, and resilience." Our relentless pursuit of innovation propels us to break new ground in foreign trade and industrial manufacturing, setting us apart in the industry.
2. Core Business
2.1 Foreign Trade
As a cornerstone of our operations, Wanying Technology is dedicated to expanding its international footprint. Our long-standing and robust partnerships with globally renowned companies ensure that our products are celebrated worldwide. Through strategic optimization of supply chain management and a commitment to superior service quality, we consistently deliver outstanding trade solutions that resonate with our esteemed clientele.
2.2 Industrial Manufacturing
In the realm of industrial manufacturing, Wanying Technology boasts state-of-the-art production facilities and a team of technical experts. We are devoted to crafting high-quality, high-performance industrial products. By staying ahead of industry trends and pioneering product and technological innovations, we adeptly cater to the evolving, diverse needs of our market.
3. Innovation and Technology
At Wanying Technology, the pursuit of technological advancement is paramount. We invest significantly in research and development, forging alliances with prestigious universities and leading research institutions to spearhead technological breakthroughs and elevate industry standards. Our collaborative efforts are instrumental in driving progress and fostering industrial transformation.
FAQ
1.Is your product customized?
Thanks for your question. Yes, because the working conditions are different, all our products are customized depending on detailed requirement! So if you give us more informaton about the lift capacity, span, lift height, power source and other specials, we will give you a exact quote!
2.What the information should I provide when inquirying?
Thanks for your question. The more information you provide, the accurater solution we can prepare for you! It will be more
appreciated if you give us the information such as the lift capacity, span, lift height, power source or other specials.
3.How many operation methods for my selection?
Thanks for your question. The standard operating methods is controller with push buttons. Meanwhile, we can also provide the group controller.You can choose any of them, just tell us!
4. The space of my workshop is limited, can the crane OK for mine?
Thanks for your question. For low headroom workshop, we have the special products. The detail dimension please consult our professional engineer.
