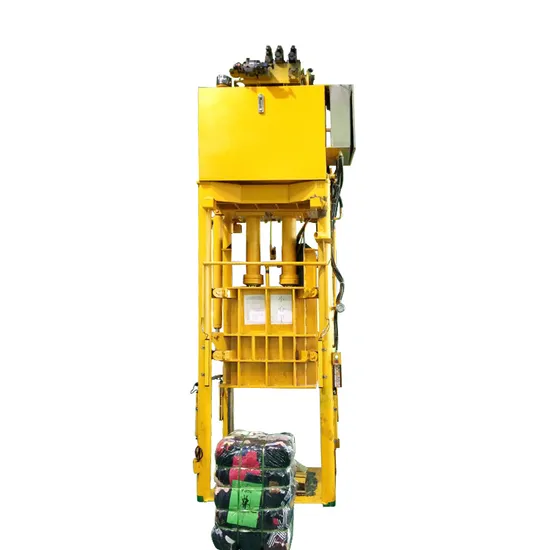

Vertical Hydraulic Cotton Textile Cloth Baler

Product Description

Electric Vertical Hydraulic Cotton Baler Textile Cloth Recycling Bailing Machine/Hydraulic Waste
Features of Hydraulic Baler
* Hydraulic lifting chamber door improves the work efficiency, conveniently for packaging and the '# 'tying
* The ram will stop running downwards when the feeding gate is opened which ensure the safety of the operation
* Equipped with independent emergency stop for safe operation
* Special ram guides design makes the platen not slope because of uneven materials feedings during compression
* Equipped with NOK seals that from Japan means longer lifespan of the seals
* Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems
* Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentricity, which replacing the common coupling connection so that extend the lifespan of the pump
60Ton Cloth Baler
Bale Size:710*510mm
Bale Weight:about 100kgs
Motor:4-15kw
Two Cylinders,vane pump:4525V50A21R
45# wear plate
Travel Position:1400mm
piston diameter:85mm
main cylinder diameter:159*125mm
rising cylinder:100*70mm
