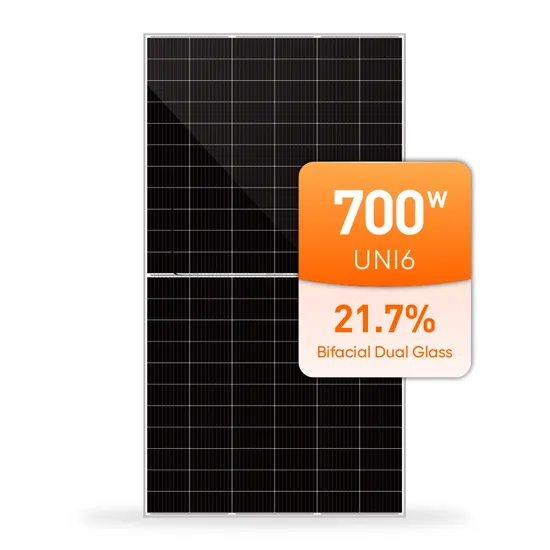

Wholesale A Grade Solar Panel 670W 700W 720W 750W Bifacial for Solar System
Basic Info.
Model NO.
solar panels 700w
Number of Cells
132cells
Application
Industrial
Condition
New
Certification
ISO, CE, TUV
Material
Monocrystalline Silicon
Transport Package
Carton with Pallet
Specification
2384*1303*30mm
Trademark
UNITED ENERGY
Origin
China
HS Code
8541430000
Production Capacity
200000000watts Per Month
Packaging & Delivery
Package Size
178.60cm * 111.50cm * 59.50cm
Package Gross Weight
780.000kg
Product Description
Product Description
| Model Number | UE675M-66H | UE680M-66H | UE685M-66H | |||
| Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT |
| Maximum Power (Pmax/W) | 675 | 512 | 680 | 516 | 685 | 520 |
| Open Circuit Voltage (Voc/V) | 46.3 | 43.6 | 46.5 | 43.8 | 46.7 | 44 |
| Short Circuit Current (Isc/A) | 18.68 | 15.05 | 18.73 | 15.09 | 18.78 | 15.13 |
| Voltage at Max Power (Vmp/V) | 38.4 | 35.9 | 38.6 | 36.1 | 38.8 | 36.3 |
| Current at Max Power (Imp/A) | 17.58 | 14.27 | 17.62 | 14.3 | 17.66 | 14.33 |
| Module Efficiency(%) | 21.73 | 21.9 | 22.06 | |||
| Temp Coefficient of Isc | +0.04%/°C | |||||
| Temp Coefficient of Voc | -0.25%/°C | |||||
| Temp Coefficient of Pmax | -0.34%/°C | |||||
| Model Number | UE690M-66H | UE695M-66H | UE700M-66H | |||
| Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT |
| Maximum Power (Pmax/W) | 690 | 524 | 695 | 528 | 700 | 532 |
| Open Circuit Voltage (Voc/V) | 46.9 | 44.2 | 47.1 | 44.4 | 47.3 | 44.6 |
| Short Circuit Current (Isc/A) | 18.83 | 15.17 | 18.88 | 15.21 | 18.93 | 15.25 |
| Voltage at Max Power (Vmp/V) | 39 | 36.5 | 39.2 | 36.7 | 39.4 | 36.9 |
| Current at Max Power (Imp/A) | 17.7 | 14.36 | 17.73 | 14.39 | 17.77 | 14.42 |
| Module Efficiency(%) | 22.22 | 22.38 | 22.54 | |||
| Temp Coefficient of Isc | +0.04%/°C | |||||
| Temp Coefficient of Voc | -0.25%/°C | |||||
| Temp Coefficient of Pmax | -0.34%/°C | |||||
Professional Packing
UE Project Case
Company Profile
As a world-class solar products manufacturer, United Energy specializes in research, development, production, and sales of solar PV products.
United Energy founded in 2009, National high-tech enterprise, specializing in R&D, which manufactures solar cells, modules, and PV power generation systems with global production capacity of 6.5GW, aiming at becoming "The expert of solar power generation". Serves worldwide customers with high-quality products and professional services. So far more than 10 GW United Energy' s products have been widely applied in over 150 countries.UE Production Line
