Plastic Portable Toilet Making Machine Rotomolding Machine

Product Description

Product Introduction

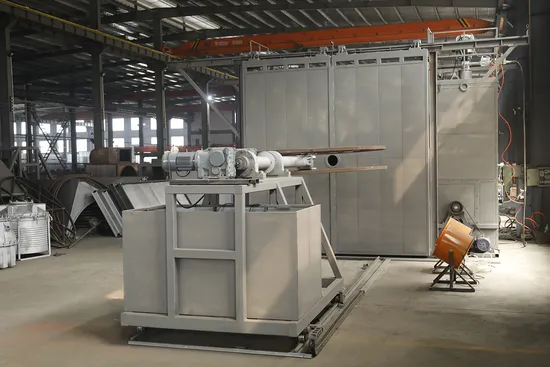

Shuttle style rotational molding machine is placed along a straight line with oven and two mainframes in its center. Cooling chamber and loading station in both sides. When one arm on one side rotating the mold into the oven to get heated, the molds on other arm can be demoulded or adding material.
In this way, the operation is flexiable for manufacturing comparatively large product. Even for comparatively small product, productivity is high. Besides, equipment is relatively simple and easy to be maintained. At present, this kind of rotational molding machine is broadly used in our country.
Technical parameters

Model No.	Oven Size(mm)	Machine Dimensions(mm)			Total Power (kw)	Total weight(Ton)
		L	W	H
BF-1600CS	Ø1600	7500	3500	2600	10	5
BF-2000CS	Ø2000	9500	4500	3100	15	8
BF-2500CS	Ø2500	12000	6000	3800	25	10
BF-3000CS	Ø3000	13500	7000	4300	32	12
BF-3500CS	Ø3500	15000	8000	4800	40	15
BF-4000CS	Ø4000	17000	9000	5400	40	18
BF-4500CS	Ø4500	18500	10000	6000	50	22
BF-5000CS	Ø5000	20500	11000	6200	50	25

Machinery type:	Shuttle rotomolding machine
Heating supply:	Natural gas,liquefied gas,diesel oil
Temperature control:	DTE Control±2ºC
Burner system:	Riello
Cooling mode:	Fan cooling
Control mode:	Touch screen+PLC(Siemens brand)
Electric brand:	Schneider,Omron
Delivery time:	About 60 days after receive the deposit
Overseas Installation period	It depends on machine size,usually takes 10-20days
Heating rate:	3 miniutes from room temperature to 280 degree in oven

Benfan rotomolding machine advantage:
1. It only takes 3mins. from room temperature increase to 250 to 280 degree in oven
2. Arm is made of special alloy material which is good load
3. Full gear transmission, high efficiency
4. Full automatic operation
5. Heavy duty oven and energy saving
6. Loading and unloading easy for mould
7. Special deep cavity heating technical, suitable for complicated product
8. Internet remote control (if the machine has problem in your factory, we can solve the problem through internet)
9. PLC and Motors are Siemens brand from German,Burner is RIELLO from Italy,Bearing is NSK from Japan, all electrial compenents are using Schneider brand.
10. Big computer screen, bob-weight system, special made motor, thermostability sealing arm head etc
11. Use circle oven, it is more uniform heat distribution on the mold, that means it is good for product making and also more energy saving.
