Paper Cup Forming Machine for 2-12oz 2-Side PE Coated Paper

Product Description

The product video in YOUTUBE:https://youtu.be/cubpAte7u5s
Automatic Medium Speed Paper cup Forming Machine (Open Cam System)
ZSZB-D automatic paper cup forming machine comes with automatic lubrication system, which makes all mechanical parts working much more smoothly. The cup bottom adopts the stretching die which make the bottom sealing quality better and less leaking percentage. It has PLC control, sensor failure detecting system, cup bottom paper feeding controlled by servo motor. The machine has safety guard to protect the people working safely, it is the best choice for making paper cups.
Technical Specification

Type:	ZSZB-D
Cup size:	4-12oz(,different size mold exchanged)
Suitable paper material:	150-380g/m2 (single or double PE-coated paper)
Capacity:	65-75pcs/min
Power source::	220V,380V 50HZ(please inform us your power in advanced)
working power:	6KW
Weight:	2800KG
Total Power:	11KW
Package size:	2800 x 1600 x 1800 mm
Working Air Source:	Air pressure 0.4Mpa;Air out-put:0.6m3/min
	A:top diameter: Min 45mm---Max 90mm B: bottom diameter Min 35mm---Max 75mm C: total height Min 30mm---Max 115mm D:bottom knurling depth Min 4mm---Max 12mm E: rim diameter Usually Φ2.5---Φ3

1. The capacity is increased to 60-70 cups per minute from 45-55 cups per minute. Gear driving system is adopted instead of chain driving to avoid chain loosed and broken.
2. It adopts PLC system, HMI computer operation,sensor detecting system. All of the electrical equipments use LG from Korea.
3. The machine host uses automatic lubrication system.It is convenient to be well maintained and good for working life.
4. The bottom paper feeding is controlled by stepping-motor (or equipped with servo-motor) and sensor.
5. The feeding length is adjusted quickly and accurately, and reduce paper waste.

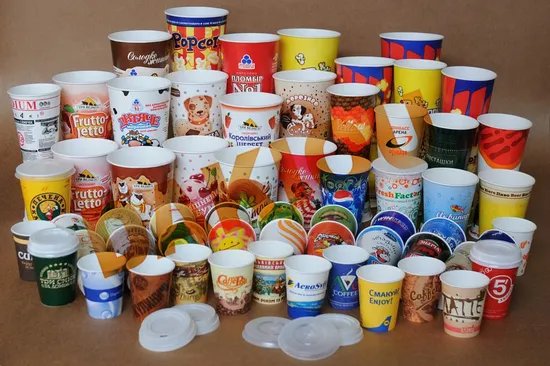

Product Show
Our Workshop
If you have any interest about our machine, please inform me!
