Polyurethane Weatherstrip Seal Machine /PU Weatherstrip Seal Machine /Weatherstrip Seal Making Machine

Polyurethane Weatherstrip Seal Machine /PU Weatherstrip Seal Machine /Weatherstrip Seal Making Machine

US$1,000.00-100,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
LXPU-M210
Principle
Low Pressure Mixing
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Power
35kw
Voltage
380V 50/60Hz
Machine Type
Low Pressure PU Foaming Machine
Material
Isocyanate and Polyol(ISO and Pol)
Flow Rate
2.5-10g/S
Application
Polyurethane Foam Strip
Transport Package
Plywood Case Packing
Specification
30000*2800*2000mm
Trademark
Lingxin
Origin
China
HS Code
8477409000
Production Capacity
20 Sets/Month

Product Description

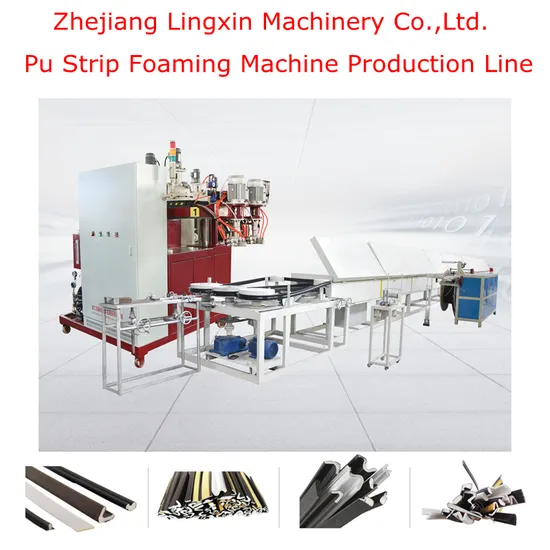

This PU Strip Foaming Machine is the 3rd Generation machine which is pecially designed and developed by our company, with excellent heat insulation performance. Widely used in producing of different kinds of cladding type sealing strip, high quality standard parts on machine make sure the machine with steady working, easy for operation, high efficiency, low energy consumption etc.
Structure Features:
★ High precision metering pump, accurate metering, random error within ± 0.5%;
★ Material flow rate and pressure adjusted by converter motor with variable frequency regulation, high accuracy, simple and rapid ration adjusting;
★ Highperformance mixed device, accurately synchronous materials output, even mixture. New leakproof structure, cold water cycle interface reserved to ensure no blockage during long downtime.
★ Adopting three layer storage tank, stainless steel liner, sandwich type heating, outer wrapped with insulation layer, temperature adjustable, safe and energy saving;
★ Can adding material sample test system, which can be switched freely without affecting normal production, saves time and material.
★ Adopting PLC and touch screen interface to control the injection, automatic cleaning and air flush,stable performance, high operability, automatically distinguish,diagnose and alarm abnormal situation, display abnormal factors.
★ Additional functions optional: full automatic material feeding, high viscosity filling pump, material consume alarm, mixing head water flush, etc.;

Technical Parameter:
Total power: 35KW
Power: supply: 380V 50HZ
Compressed air: 0.6-0.8MPa
Casting Flow Rate: 2.5-10g/s
Weight: 2500kg
Rotated speed: 6000rpm
Mix type: Dynamic
Material tank volume: 80L
Mix range: A: B= 100 : 25-70
Measure accuracy: around 0.5%
Our company:
Certificate:
Welcome to contact with us /send inquiry for more details of machines. We will reply you ASAP. Thanks.
