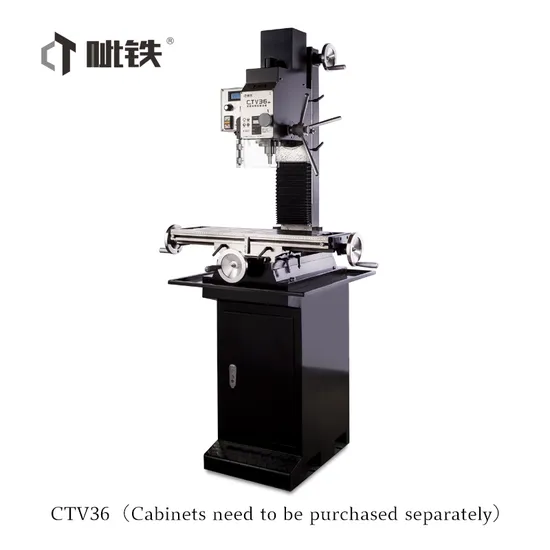

Brushless Motor Mini Milling Drilling Machine CTV36 with Dro and Automatic Feeding
Basic Info.
Model NO.
CTV36
Structure
Desktop
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
1000*700*1000mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000
Product Description
| Max.Drilling capacity | 36mm |
| Max.milling capacity | 76mm |
| Max.vertical milling capacity | 30mm |
| Table size | 700*210mm |
| T-slots size | 14mm |
| X spindle travel | 440mm |
| Y spindle travel | 220mm |
| Z spindle travel | 400mm |
| Spindle taper | MT3 |
| Spindle travel | 70mm |
| Distance from spindle to column guide rail | 190mm |
| Distance from spindle end to table surface | 470mm |
| Spindle box left&right rotation angle | ±45° |
| Spindle speeds | 100~2250rpm/Stepless |
| Motor Power | 1.5KW |
| Net weight/gross weight | 220/240kg |
| Overall dimensions | 860x710x1020mm |
| Package Size | 900x740x1150mm |
