High-Quality CNC Hydraulic Bending Machine with a Pressure of 8 Tons and a Worktable Length of 2.5 Meters for Sheet Metal Industry

High-Quality CNC Hydraulic Bending Machine with a Pressure of 8 Tons and a Worktable Length of 2.5 Meters for Sheet Metal Industry

US$8,000.00-90,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
GLB
Certification
ISO 9001:2000, ISO 9001:2008, CE, Sheet Metal Processing
Automation
Automatic
Suitable for
Copper, Aluminum, Carbon Steel, Stainless Steel, All Metal
Type
Hydraulic Bending Machine
Repeat Accuracies
+/-0.01mm
Parallelism Accuracies
+/-0.01mm
Premium Backgauge
R, Z1-Z2, X′axes
Supreme Backgauge
6 Axes X1/X2, R1/R2, Z1/Z2
Transport Package
Packed in Piaywood
Specification
metal
Trademark
GLORY STAR
Origin
China
HS Code
84561000
Production Capacity
3500 PCS/Year

Product Description

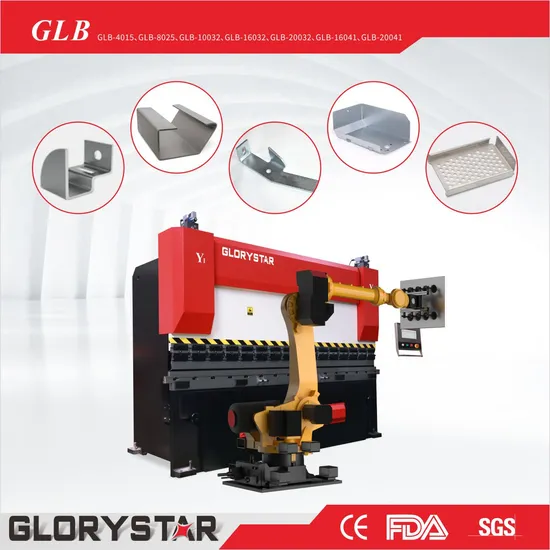

Hydraulic CNC Press Brake Bending Machines >>> Features
1) CNC hydraulic bending machine is a high precision and high efficiency sheet metal bending equipment. The structure design is advanced and reasonable, with superior parameters and performance.
2) Utilizing word-leading bending system, hydraulic system, precise ball screw and guide-rail, premium processed parts, the overall performance is reliable,with various standard dies for option.
3) Equipped with full range of bending functions and automatic programming software, combining with excellent automatic inspection, protection and self diagnosis functions.
4) CNC hydraulic bending machine has professional control system, proportion servo valve and direction valve to automatically calculate, adjust main pressure and compensation.
5) According to requirements of sheet metal processing by, it can automatically process different size and shape of work pieces and any curve profile, and some special processing.
>>> Technical Data
Model GLB-
4015
GLB-
8025
GLB-
10032
GLB-
16032
GLB-
16041
GLB-
20032
GLB-
20041
GLB-
25032
GLB-
25041
Nominal Pressure (KN) 400 800 1000 1600 1600 2000 2000 2500 2500
Worktable Length (MM) 1500 2500 3200 3200 4100 3200 4100 3200 4100
Distance Between Two Columns (MM) 1140 2010 2700 2700 3300 2700 3300 2700 3300
Maximum opening height (MM) 430 430 460 460 460 500 500 500 500
Slider stroke length (MM) 160 160 200 200 200 240 240 240 240
Throat depth (MM) 320 340 400 400 400 380 380 390 390
Slider
speed
(MM/S)
Approach speed 180 180 180 160 160 120 120 110 110
Running speed 10 10 10 9 9 8 8 8 8
Retract speed 150 150 150 130 130 100 100 90 90
Main motor (KW) 4 7.5 7.5 11 11 15 15 15 15
Tank capacity (L) 170 270 350 380 480 480 480 480 480
Dimension (MM) 1720*1905
*2375
2720*1990
*2490
3400*1990*
2580
3400*2035
*2700
4300*2035
*2700
3400*2165
*2810
4300*2165
*2810
3400*2175
*2865
4300*2175
*2865
Net Weight (KGS) 3800 6500 8300 10000 11500 12000 13500 13000 145000
>>> Advantages
A. All-steel welding structure, entire tempering treatment, better rigidity and higher strength.
B. Welding on professional worktable,it ensures the verticality, parallelism and straightness.
C. The frame is stress-relief treated in automatic tempering furnace for 48 hours, temperature changes as 200↗650↘ 200(ºC), to ensure frame stability and precision. The surface is treated with sand blasting and environmental primer.
D. Adopting world top machine tools - Japan TOSHIBA BSF-150 floor type boring milling machining center to finish the frame at one-time, which farthest assures the precision and stability under long time operation.
