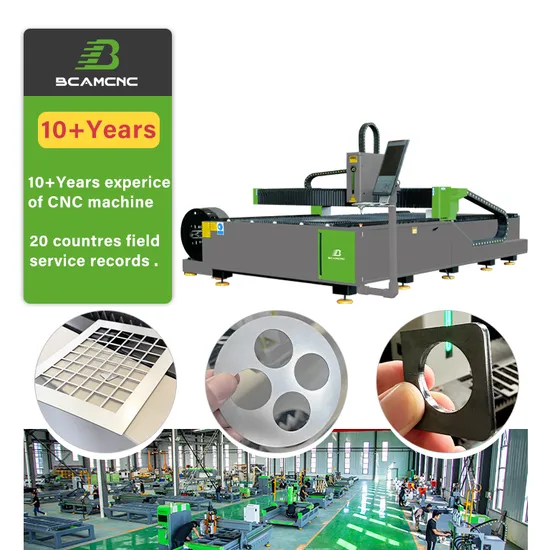

Plate Tube Integrated Laser Cutting Machine for Sheet Plate Sheet Tube

Plate Tube Integrated Laser Cutting Machine for Sheet Plate Sheet Tube

US$12,999.00-48,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
BCM-FT
Applicable Material
Metal
Structure Type
Gantry Type
Laser Technology
Laser Control Fault Cutting
Power Supply Requirement
380V 50/60Hz
Working Environment
Temp:0-40°c,Humidity:<80%,
Tube Cutting Type
Round Tube, Square Tube, Oval Tube, Flat Tube
Tube Cutting Material
Stainless Steel, Carbon Steel, Aluminum, Copper, I
Transport Package
According to Customer Needs
Specification
5.2*2.2*2.5/3000KG
Trademark
BCAMCNC
Origin
Shandong China
HS Code
8456110090
Production Capacity
1000pieces/Year

Product Description

Product Description
ADVANTAGES
1.Cutting plates and tubes with only 1 system saves cost and space, improving work efficiency 2.The reciprocating feeding system is not limited to the length of the pipe, has a high degree of automation, directly imports two-dimensional graphics, automatically identifies the cutting trajectory, and performs precise high-speed processing.
3.Equipped with intelligent anti-collision function, the laser cutting head will automatically jump over or bypass the tilted workpiece and move smoothly to the next processing position to avoid collision with the cutting workpiece, effectively reducing the damage rate of the laser head.
4.Equipped with safety protection grating, it provides the highest level of safety protection for operators and equipment. When a person or object accidentally enters the danger zone, the machine will automatically detect the movement trajectory of the beam and suspend operation.
SPECIFICATION
Product Name Plate & tube integrated fiber laser cutting machine (BCM FT)
Working Area 3015/4015/4020/6015/6020/6025/80208025/
Laser Power 1500w/2000w/3000w/4000w/6000w/8000w/10000w/12000W/24000W/50000W/80000W
Max Cutting Thickness 0-100mm(Depends on the power of the machine & cutting material)
Max Cutting Speed 120m/min
X,Y,Z Traveling Positioning Accuracy ±0.02/2000mm
Laser Head Raytools
Maximum clamp diameter Round tube, square tube 220mm (customizable)
Laser Source Max/Raycus/IPG
Power System Taiwan Delta motor and drivers+Japan Shimpo reducer
Location System Red dot indicator
Delivery Time 7 - 10 working days after payment
Application Material stainless steel, carbon steel, electrical steel, galvanized steel, aluminum zinc plate, aluminum, aluminum alloy, titanium alloy,copper, brass, iron .

Machine Details
MACHINE DETAILS
AUTO FOCUS LASER CUTTING HEAD
Adopt special anti-collision cutting head. Ensure high cutting accuracy and cutting efficiency.High precision and easy maintenance.
HIGH LIGHT AND RIGIDITY
Aerospace grade aluminum light qualit, high speed.Beam as a whole by the finite element analysis optimization of high rigidity.
HIGH STABILITY BED
To optimize the design of the sectional welding lathe bed.Lathe bed in the middle of reinforcing bar, improves the lathe bed stability.
The motor and reducer
Machine adopt Taiwan delta servomotor and japan shimpo reducer.
Industrial Water Chiller
Intelligent dual temperature dual control mode to satisfy different needs of a fiber laser device and the optics, Multiple alarm protection.
LONG LIFE LASER SOURCE
Fiber laser generator with great and stable performance to have lifespan over 100,000 hours.Plate and tube two cut, improve production efficiency.
Cutting Parameters
Samples Display
SAMPLES DISPLAY Recommended Products


Certifications
CERTIFICATIONS
Customer Reviews
CUSTOMER REVIEWS
Company Profile
ABOUT BCAMCNC
FAQ
FAQ
Q: I don't know which one is suitable for me ?
A: Just tell me this information and our professional sales colleagues will recommend the right machine for you
1. What type of metal do you want to cut? (e.g., Sheet, tube, or both)2. What kinds of metal materials are you interested in? (e.g., Carbon steel, Stainless steel, Aluminium)3. What is the maximum cutting thickness and size? (e.g., Thickness: ___, Size: ___)
Q: Are you a factory or a trade company?
A: We are a factory with rich experience. Our factory is in Shandong, China. Or directly make an appointment with the customer for a video factory inspection. Send factory inspection video to customers to watch
Q:What about after-sales problems?
A: If your macine such problems, please contact us as soon as possible, and do not try to repair the machine by yourself or others. We will reply as soon as possible within 24 hours to solve it for you.
Q:How to install and run the machine?
A: Our technicians have installed the machine before shipment. For the installation of some small parts, we will send detailed training videos and user manuals with the device. 95% of customers can learn by themselves.
If you have other questions, Please send inquiry. We will reply to you as soon as possible.
