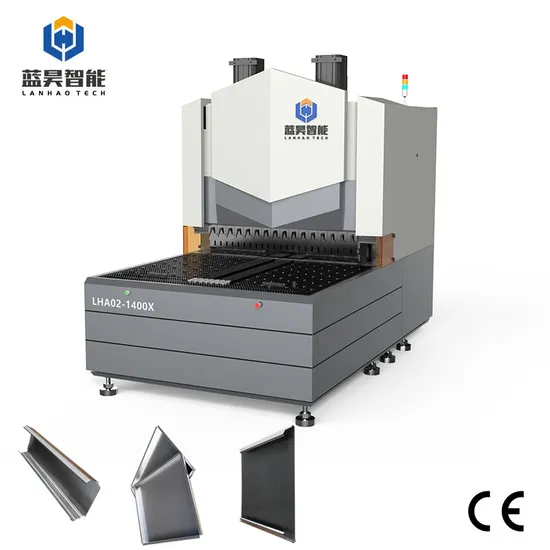

China Lanhao 1400mm Intelligent Folding Machine for Metal
| US$65,000.00-70,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LHA-1400X
Trademark
LANHAO
Origin
China
Product Description
Product Parameters| LHA-1400X-02 Technical parameters | |
| Feeding structure | Suction cup |
| Work table structure | brush |
| System minimum accuracy | 0.001mm |
| Max bending speed | 0.2 second/time |
| Max feeding speed | 90m/min |
| Max.bending width | 1400mm |
| Max.Bending size | L 1400mm X W1400mm |
| Max. Bending height | 170mm |
| Min. Bending height | 3mm |
| Min.arc radius | 0.5mm |
| Rated power | 380V |
| Total Motor power | 34KW |
| Average power | About 1.5KW |
| Noise | About 50 dB |
| Machine size | L 365cm X W 190cm X H 290cm |
| Total weight | About 10 tons |
| User operating environment | Win7 and above operating system |
| Max. Bending width | UTS 520N/mm2 304 stainless steel 1.0mm UTS 410N/mm2 cold panel 1.2mm UTS 265N/mm2 aluminium panel 1.6mm |
| Min. Panel width | 0.35mm |
| Four side forming min. Inner size | About 140mmx210mm |
| Double side forming min. Inner size | About 140mm |
| Bending angle | 0-180 degree |
| Axis | 9 |
