Plastic Crusher Machine Plastic Shredder

Product Description

Industrial Plastic Shredder/Single Shaft Shredder/Double Shaft Shredder for Bottle Flakes/Plastic Pipes
Single shaft shredder uses the interaction of movable cutter heads and fixed knives to tear, cut, and extrude the material into small size. It can be available for shredding a wide range of materials including plastic, wood, rubber, and paper, etc.
1. Crusher, Shredder, Knives for crusher, grinding machine
(1)The SWP series plastic crusher is mainly used for crushing plastic and rubber products:
SWP100, SWP160, SWP200, SWP300, SWP320 are mainly used for crushing film, yarn, block, rod, pipe and profile, etc. SWP260, SWP360 are mainly used for crushing block, rod, container, etc. SWP450, SWP630 are mainly used for crushing pipe, profile, rod, plate, sheet, board strip, etc. SP-120, SP-250 are mainly equipped with small power injection machine, used for crushing the leftovers of the injection machine. SWP650, SWP800, SWP1000 are mainly used for crushing beer cases, buckets, and such hollow containers. We also produce artificial marble crusher.
Crusher PC series for soft films and so on. The Technical Parameters of The SWP series plastic crusher

Model	Rotating knife dia.(mm)	Rotating knife quantity (pcs)	Fixed knife quantity (pcs)	Hole dia. of sieve (mm)	Particle size (mm)	Capacity (kg)	Power (kw)	Overall dimension (mm)	Total weight (kg)
SWP100	100	2	2	3-5	2-4	50	1.5	600×400×800	120
SWP160	160	3	2	6-10	4-8	100-150	3	790×600×1175	300
SWP200	200	3	2	6-10	4-8	100-200	4	800×640×1450	300
SWP260	260	3	2	6-10	4-8	100-200	4	800×1000×1200	200
SWP300	300	3	2	6-10	4-8	200-300	11	1245×880×1720	660
SWP2232	220	12	2	6-10	4-8	200-250	5.5	1000×800×1200	360
SWP360	360	3	2	6-10	4-8	350-400	11	1600×1100×1400	750
SWP380	380	15	2	8-12	8-10	200-500	15	2180×1020×1810	1200
SWP450	450	9	2	6-10	6-8	250-400	22	2080×1500×2120	1480
SWP500	500	35	4	12	6-9	700-800	30	2535×1590×3000	3000
SWP630	630	60	4	12	6-9	700-800	30	1900×1500×3500	6500
SWP800	800	10	4	12	6-8	800-1000	55	1000×1500×3500	6500
SWP3040	280	15	2	8-10	8-10	200-300	7.5	1000×1200×1030	450
SWP120	120	8	2	6	6	50	0.75	600×760×1030	100
SWP250	250	8	2	6	6	80	2.2	1000×900×1100	180

(2)The Techinical Parameters of Plastic Shredder, single shaft shredder, double shaft shredder.

Model	Cutter diameter(mm)	Crusher room	Capacity(kg|h)	Power(kw)	Overall dimension(mm)(mm)	Weight(kg)
600	260	600*550	300-5000	15	1800*1300*1700	2850
800	300	800*600	500-800	37	2800*1800*2100	4200
1000	350	1000*700	800-1500	45	2800*2000*2100	6500
1200	400	1200*900	1500-2500	55	2800*2500*2100	7800
1400	450	1400*900	2500-4000	75	2800*2800*2100	9600
1600	500	1600*1000	4000-6000	90	3000*2800*2100	12500

2.The application of Industrial Plastic Shredder/Single Shaft Shredder/Double Shaft Shredder
The shredder is used to recycle plastic, paper, wood, fiber, cable, rubber, home appliance, light steel, municipal solid waste, etc. It is ideally suited for the reduction of a wide range of different materials: • Packaging Materials - cardboard, woven sacks •Textile: cloth fiber, nylon; •Cable wires: copper core cable, aluminum cable, composite cables; •Polypropylene pipe, industrial packaging & plastic films, PP woven bags; •Plastic: plastic block, plastic sheets, PET bottle, plastics pipe, plastic container, plastic drums;
•Paper - documents, paper mill waste

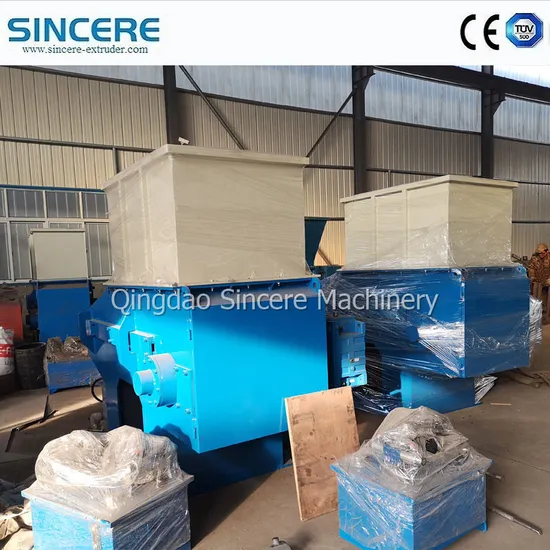

3. Detailed pictures of Industrial Plastic Shredder/Single Shaft Shredder/Double Shaft Shredder
4.Our service *We can provide customers with perfect installation and use services. *We can provide customers with satisfactory products according to their needs. *When problems arise during the use of products, we can provide appropriate solutions. *The warranty period is one year, except man-damage. *Welcome to visit our factory and looking forward to win-win cooperation.
5.Our cooperation process:
