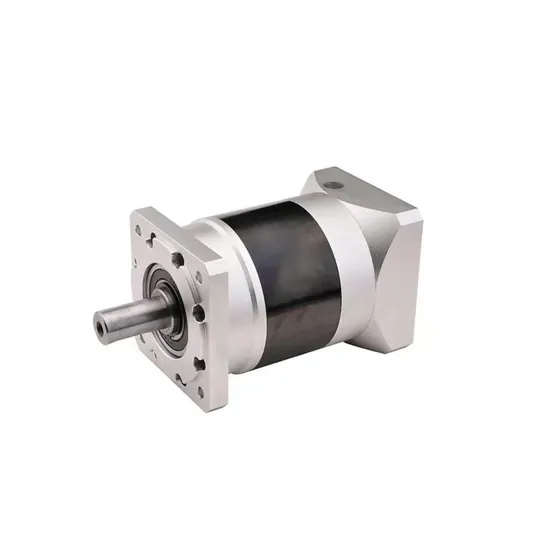

Wholesales Price High Precision Ratio 40: 1 Planetary Gearbox Speed Reducer

Wholesales Price High Precision Ratio 40: 1 Planetary Gearbox Speed Reducer

US$100.00 1 UNIT (MOQ)

Basic Info.

Model NO.
PLE/PLF Series
Gear Shape
Planetary
Step
Single-Step
Type
Gear Reducer
Weight
1.3
Ratio
3-100
Rated Input Speed
5000rpm
Maxium Input Speed
10000rpm
dB
<56
Transport Package
Wood Case
Specification
AB60
Trademark
HUAKE
Origin
China
HS Code
8501320000
Production Capacity
5000/Year

Product Description


High precision PLF PLE series Planetary Gearbox for 60 80 110 flange Servo Motor
Product namePrecision Planetary Reducer
Model No.AB42-AB220
Layout formPlanetary structure
Speed ratio3-512
Output torque20-1500N.M
Power50W~30KW
Input speed0~4000RPM
Output speed0~1300RPM
Output typeShaft type
Installation Flange mounting
Description of planetary gearbox:es: PLE, PLF
2) Gearbox outline dimension: 60, 80, 90,120, 160
3) Reduction ratio: 3, 4, 5, 7, 10, 9, 12, 16, 20, 28, 35, 40, 50,64, 70, 80, 100, 125, 140, 175,200, 250, 350, 400,500,700,1000.
4) Lubrication: Lifetime lubrication
5) Input speed: 3000- 8000rpm
6) Life: >20, 000 hours
7) Backlash: Stage 1: <10(arcmin)
Stage 2: <15(arcmin)
Stage 3: <22 (arcmin)
8) Operating temperature: -25°C to +90°CLow backlash Planetary Gearbox for ECMA Delta Servo Motor Main Features:1. low backlash
2. high output torque-the industry's highest torque density
3. balanced motor pinion
4. high efficiency(up to 98%)
5. ratio 3:1 to 1000:1
6. low noise
7. operable in any mounting positions
8. lifetime lubricationDetailed ImageParametersPLE planetary gearbox for servo motor
ModelPLE /PLF SERIES
ModelPLE /PLF 60, 80, 90, 120, 160
4 optional sizes60mm, 90mm, 120mm, 160mm
Rated Torque8.5N.m-680N.m
Gear Ratio One-stage3, 4, 5, 7, 10
Gear Ratio Two-stage12, 16, 20, 25, 28, 35, 40, 50, 70
Gear Ratio Three-stage80, 100, 125, 140, 175, 200, 250, 280, 350
Note : It's just the typical technical data for you reference, The specification such as voltage, speed, torque, shaft ,speed ratio can customized.Product Overview
PRODUCT SPECIFICATPLE series spur gear planetary gear motor
Product application scenarios
Product DescriptionPrecision planetary gear reducer is another name for planetary gear reducer in the industry. Its main transmission structure is planetary gear, sun gear and inner gear ring.
Compared with other gear reducers, precision planetary gear reducers have the characteristics of high rigidity, high precision (single stage can achieve less than 1 point), high transmission efficiency (single stage can achieve 97% - 98%), high torque/volume ratio, lifelong maintenance-free, etc. Most of them are installed on stepper motor and servo motor to reduce speed, improve torque and match inertia.
