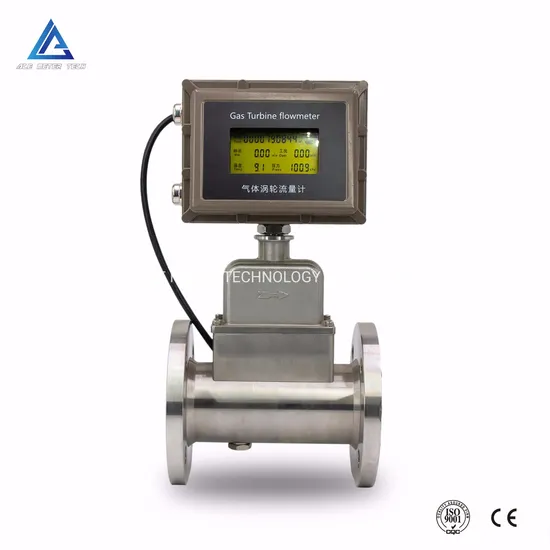

High Accuracy Gas Turbine Flow Meter Flowmeter for Natural Gas, Fuel Gas, LPG
| US$450.00-7,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ACE-LWQ
Accuracy
1%-1.5%
Main Application
Nature Gas, LPG Gas;Compressed Air;Fuel Gas
Size
DN25-DN300
Sensor
Tube/Flange
Application
Energy Metering
Type
Turbine Flow Meter
Measuring Media
Gas
Measuring Principle
Mechanics
Measurement Object
Closed Pipeline
Certification
JIS, DIN, ANS, GB, CE, ISO
Transport Package
Paper Box; Pollywood Carton
Specification
Depends On Size
Trademark
ACE
Origin
Made in China
HS Code
9026100000
Production Capacity
50000sets/Year
Product Description
High Accuracy Gas Turbine Flow Meter Flowmeter for Natural Gas,Fuel Gas,LPG| Item | Description |
| Type | Integrated Type |
| Available Medium | Non-Corrosive,Non Impurities Gas |
| Range of Diameter | DN25-DN300 1"-12" |
| Accuracy | 1.5% (1.0% Optional) |
| Measure Range Ratio | 1:20 |
| Medium Temperature | -20-80ºC |
| Rated Pressure Range | PN16(High Pressure Customize Available) |
| Shaft Material | Aluminum Alloy |
| Double Phase Stainless Steel 2202 | |
| Body Material | Stainless Steel 304 |
| Aluminum Alloy | |
| Connection | Flange(GB,DIN,ANSI,JIS,HG or Customize) |
| Thread(NPT,BSP,GB or Customize) | |
| Straight Pipe Section | 5*DN Upstream .3*DN Downstream |
| Display | LCD Display with Adjusting Button |
| Volume Correction | Temperature and Pressure Compensation(@20ºC,1 ATM) |
| Power Supply | 24VDC(8-36VDC) |
| 3.6V Lithium Battery(Life Time 2-3 Years) | |
| Signal Output | 4-20mA |
| Frequency/Pulse | |
| Communication Protocol | RS485 MODBUS |
| HART | |
| Electricity Entry | M20*1.5 |
| 1/2" NPT | |
| Protection Grade | IP65 |
| Explosion Proof Grade | ExdIIBT6(Sensor) Exd{ia}IICT4(Transmitter) |
