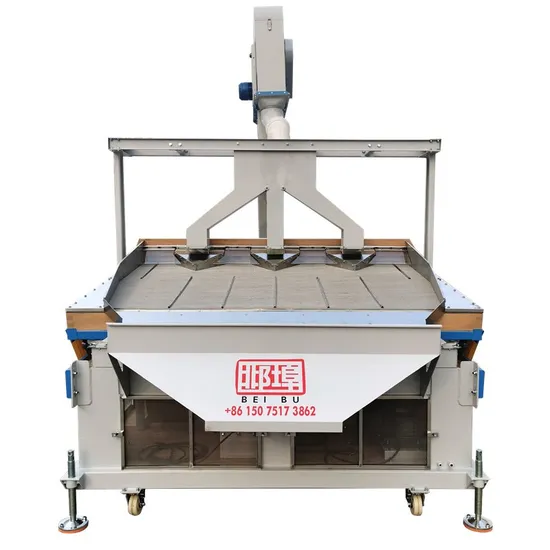

Millet Destoner Machine for Removing Stones
| US$5,000.00-5,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
QSC-10
Application
Removing Stones
Power Source
Electric
Transmission
Soft Shaft
Certification
QS
Color
Blue
Condition
New
Application Field
Agriculture
Warranty
One Year
Weight
1200kg
Capacity
5t/H
Millet
Destoner
Grain
Cleaning Machine
Transport Package
Nude or Wooden Box
Specification
5QS-10
Trademark
BEIBU
Origin
Shijiazhuang, China
HS Code
8437109000
Production Capacity
200sets/Year
Packaging & Delivery
Package Size
200.00cm * 230.00cm * 175.00cm
Package Gross Weight
1200.000kg
Product Description
Millet Destoner Machine for Removing StonesProduct Description
• It can clean most grain seeds and remove stones and soil; as well as some granular materials, remove heavier impurities; • The countertop is made of 304 food-grade stainless steel braided mesh to extend the service life; • The stone outlet adopts the back-blowing function to effectively reduce the material in the stone being brought out; • The sheet metal parts of the equipment are cut by laser to ensure accuracy. Working Principle
•Blowing type De-stoner will remove the stones and other heavy impurities;
•The raw material will deliver to the De-stoner by elevator,then the material will evenly scattered on the De-stoner table,with the fan motor under the table blow up the wind and the vibration of machine,the stones and other heavy impurities will climb up and the material will go down to the final product outlet.
•De-stoner capacity which is 3t/h based sesame and the machine got two types based on the different capacity.
Machine Structure
Machine Instructure
Product Parameters
| Model | 5QS-5 | 5QS-10 |
| Table Size | 1600mm*1600mm | 2300mm*1600mm |
| Power(kw) | Fan motor:5.5KW Vibration motor:0.75KW Total in 6.25KW | Fan motor:7.5KWVibration motor:1.1KWTotal in 8.6KW |
| Capacity(t/h) | 5t/h based on beans | 10t/h based on wheat |
| Weight(kg) | 950kg | 1300kg |
| Overall Size L×W×H(mm) | 2300mm*1660mm*1600mm | 2300*2290mm*1600mm |
| Voltage | 380V,50HZ | 380V,50HZ |
Cleaning Result
Machine Loading Picture
Installation Warehouse
