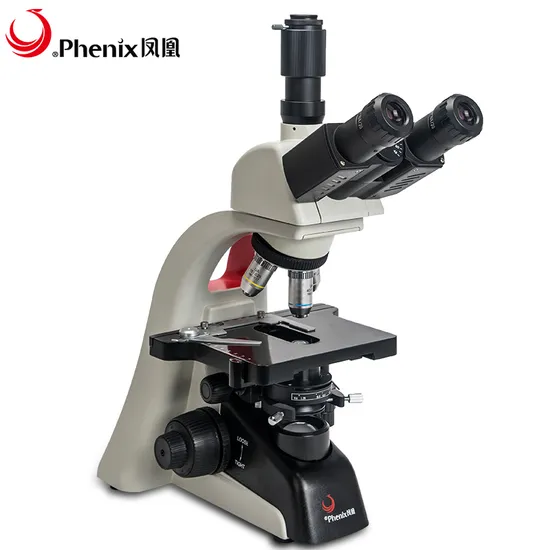

Popular 40X-1600X Trinocular Laboratory Biological Microscope with Camera TV Tube pH100-3A41L-Ep

Product Description

Product Description
PH100 series laboratory biological microscopes,which adopt the ergonomic design,have smooth line and beautiful appearance.With superior optical system,these series have clearer images,easy to observe and use and not rasy to fatigue during long time's observation.Attached with handles inside which makes it easy to take and move.
PH100 series laboratory biological microscopes can be applied in the fields such as institutions of higher learning,medical health,laboratory,scientific research institutions for making teaching research,clinical experiment as well as scientific research analysis of biology,pathology,bacteriology,etc.


Product Parameters

Part Name	PH100-3A43L-EP
Magnification	40X-1600X
Eyepiece	Wide Field WF10X/20mm,diopter adjustable
	Wide Field WF16X/15mm,diopter adjustable
Viewing head	Compensation Trinocular head,30° inclined,interpupillary distance 48-75mm.(360° rotatable,with push-pull rod)
Nosepiece	4 Holes revolving nosepieces,inward
195mm Achromatic Objective	4X,10X,40X(Spring),100X(Spring,Oil)
Focusing System	Coarse & fine coaxial focusing knob, with the hand wheel tightness adjustment and random limit locking mechanism.coarse focusing range 22mm,fine focusing graduation 0.002mm
Stage	Double layer mechanical stage,size 160*142mm,moving range 76*52mm,can hold 2 slides
Condenser	Abbe condenser N.A.=1.25,with iris diaphragm,center adjustment,and height adjust knob.
Bottom light	LED,3W,compound eye illumination,brightness adjustable
	halogen lamp 12V/20W,brightness adjustable (Optional)
Power	External voltage stabilized power supply adapter DC 6V/2A
Optional	Phase Contrast attachment

Certifications

Packaging & Shipping
For exhibition
FAQ 1. Who are we?
We are based in Shanghai, China, start from 2019. But we have more than 10 years export experience.2. How can we guarantee quality?
Always a pre-production sample before mass production.Always final Inspection before shipment.3.What can you buy from us?
Ophthalmic Unit/Auto Refractometer/Slit Lamp/Phoropter/Lensmeter,Ophthalmic Unit / Auto Refractometer / Slit Lamp / Phoropter / Lensmeter Biological microscope, Stereo microscope,Digital microscope, Metallographic microscope, fluorescence microscope, Polarizing microscope Binoculars,telescope
4. Why should you buy from us not from other suppliers?
1.We innovative in optical field 10 Years Experience.
2.Certification CE ISO9001 ISO13485.
3.Good quality control
4.3-7 days delivery, 24 hours service.
5.One-stop service5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
