CCD Exposure Unit for High-Precision PCB Production
| US$76,000.00-86,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
UVLED-A830
Usage
Semiconductor, Microelectronics, PCB Exposure
Type
Plate Exposure
Page
Double Faced
Automatic Grade
Semiautomatic
Product Type
Machine
Proximity Exposure
Vacuum Contact
Feature Size
2mil
Weight
1700kg
Power
AC380V
Maximum Machining Size
550*650mm
Minimum Machining Size
305*350mm
Transport Package
Standard Package, Wooden Package, Vacuum Package
Specification
L2400*W1550*H2170mm
Trademark
xinguanghui
Origin
Shenzhen
HS Code
8486309000
Production Capacity
500sets
Packaging & Delivery
Package Size
260.00cm * 175.00cm * 215.00cm
Package Gross Weight
1800.000kg
Product Description

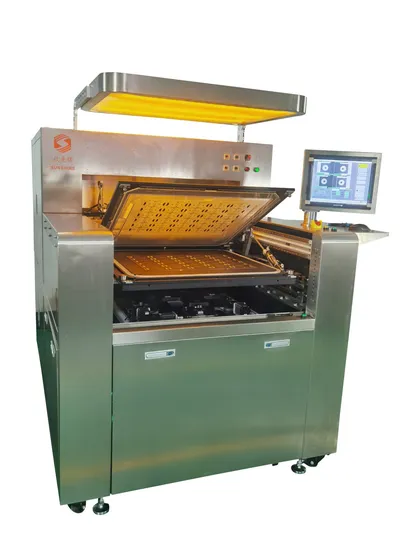

Product Description 4CCD Auto Solder Mask Exposure Machine
| product model | UVLED-A830 | |
Production specifications | PCB size | 305*350~550*650(mm) |
| Flim size | 0.1~3.2(mm) | |
| PCB thickness | 610*710(mm) | |
| intensity of light source | >500mw/cm2 | |
Working table | Exposure worktops | Double frame alternating operation |
| Exposure way | Single-sided exposure | |
| mesa structure | Glass VS industrial aluminum material | |
| Mesa material | optical glass | |
Light source system | Light source type | Mixed-band high-power UV LED |
| Light source output power | >3KW/ lamp | |
| Light source structure | Copper-based PCB plate array light panel | |
| uniformity | >=85% | |
| Parallel half Angle | <2º | |
| cooling-down method | hydrocooling | |
Counterpoint system | CCD quantity | 4pcs |
| CCD Mobile way | Automatic movement | |
| Contrast image examination | PCB board And the film after suction shrinkage check | |
| plate fixed form | Plate double-groove vacuum adsorption | |
| counterpoint mode (two-sided) | The negative dots are aligned to the graphical target of the PCB panel | |
| Installation mode of negatives | Automatic installation / manual installation | |
| Mechanical repetition accuracy | ±12.5μm | |
| Image read accuracy | ±5μm | |
productive power | capacity(do not contain cleaning time) | 2~4 piece/min |
| Contrast mechanical accuracy | ±15μm | |
| Light type | solder mask ink | |
| Display the line resolution ability after the picture | 4mil/4mil | |
| control system | operation interface | Large touch-screen operation interface |
| Control hardware | Industrial PC + motion control card, high reliability and stability | |
produce requirement | The way of loading and unloading | Artificial take and put |
| Production plate material placement requirements | Hanging pin production,Multiple pins are optional | |
| complete set requirement | current source | 3 Phase AC380V 50Hz 15KW |
| Environmental temperature and humidity | 22±2ºC,humidity 55%±5% Clean environment | |
| External air source | >=5kg/ cm2,60-180L/min | |
| External cooling water | >=4kg/ cm2,40L/min,temperature 7-12ºC | |
| filter system | 5000Clss Efficient filter | |
| Main material | SUS304 National standard plate | |
| other | Machine size | L2400*W1550*H2170mm |
| Machine weight | 1700KG | |
