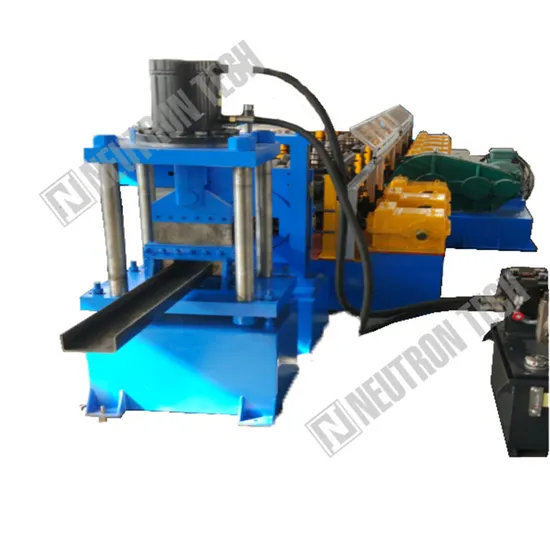

CNC Steel U Type Guardrail Column Production Machine C Type Forming Machine Solar Structure Storage /Shelving Rack Roll Forming Cutting Machine

Product Description

Product parameters
Raw material:
Hot-dip Galvanized steel sheet Q235
Max. Thickness: 6mm
Width: 178mm
Height: 76mm
Length: 400mm& 1800mm; any length
Main Components
Manual Decoiler
Feeding-Levelling
Roll Forming System
Hydraulic Punching System
Hydraulic Cutting System
PLC Control System
Receive Table
Main Technical Specifications

Roller station	12 forming units
Under Frame	Welded structure
Shaft diameter	100mm
Shaft material	40Cr
Motor Power	45KW
Forming Speed	1-12m/min
Cutter Material	Cr12Mov
Main Structure	Welded Structural
Cutting type	Hydraulic Operation
Hydraulic Motor Power	15 KW
Hydraulic Pressure	12 Mpa
Hydraulic Oil	46# abrade oil
Cutting Die	1set of cutting blade, Cr12
Receive Table	3m
Weight	20T
Dimension	23000*2500*1200mm (L*W*H)

PLC System
Touch Screen	Kunlun Tongtai
Inverter	Yineng, Shenzhen
Voltage	+/-24V
PLC	Mitsubishi
Function	Measure the length and quantity automatically

Product display
Production process
Customer Photo
Certifications
Company information
Packaging & Shipping
FAQ:
Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide12 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
