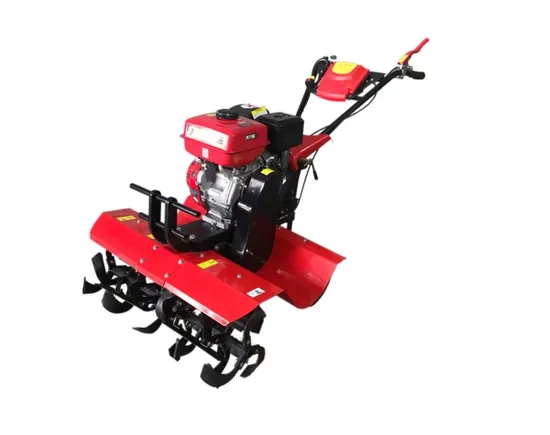

Rotary Machine Mini Cultivator Power Tiller with RJ186F Diesel Engine
| US$490.00-535.00 | 30 Sets (MOQ) |
Basic Info.
Model NO.
1WG4-80S Rotary Machine
Application Field
Agriculture, Forestry
Farming Policy
Dry Field & Paddy Field Machine
Power Source
Diesel
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Hanging
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Certification
CE
Color
Red
Warranty
One Year
Conbustion System
Direct Injection
Starting Method
Manual/Electric
Direction of Rotation
Counterclockwise, Facing P.T.O Shaft
Lube Oil Type
CD Grade or SAE 10W-30, 15W-40
Lubricating System
Pressure Splashed
Transport Package
Plywood Packing
Specification
1WG4-80S Rotary
Trademark
RAJA
Origin
Zhejiang
Product Description
1.Product Specification:| Model No | 1WG4-80 Rotary Machine |
| Engine Model | RJ186F |
| Engine Type | Single Cyliner,vertical,four stroke,direct injection,air cooled |
| Structure Type | Front-rotating |
| Displacement(ml) | 285.6 |
| Compression Ratio | 20:1 |
| Rated Power(KW/rpm) | 6.6/3600 |
| MAX Power(HP) | 9 |
| Rated Speed | 3600 |
| Lubricating System | Pressure Splashed |
| Starting System | Recoil Start |
| Gear Shifting | Rotary tillage/Walking gear/Parking/Reverse gear |
| Tilling Width | 80cm |
| Ploughing Depth | Dry field ≥120/Paddy field ≥100 |
| Rotary Tillage Speed | 220r / min |
2.Detailed Images:
3.Product Features:
-----Easy and quick start,Strong Power
-----42Crmo material crankshaft,the same material as car crankshaft ¬ easy to break
-----The miniaturized fuel injection system
-----Low fuel consumpation
----- Lightweight and compact design
-----Stand up the hard work
-----Gear drive
-----High trenching efficiency
-----Simple operation
4.Usage Fileds:
-----This product can be used in tobacco, orchard and sugarcane fields to dig ditches and soil etc
5. Certifications:
6.Company Information
7.Packing&Shipping
8. FAQ
1. Q: What is the minimum order quantity?
A: Our MOQ is 50sets for machines,500sets for spare parts.
2. Q: What payment way do you accept?
A: We accept T/T, LC,Western Union,Money Gram,Paypal etc
3. Q: What are your payment terms?
A: In principle T/T 30% as deposit, 70% as BL copy.
4. Q: Do you have samples?
A: Sample order is acceptable, but due to the high value of the engine, we cannot accept free of charge in principle.
5. Q: What is your delivery time?
A: Our delivery time is 25-30 days after we receive deposit or L/C.
