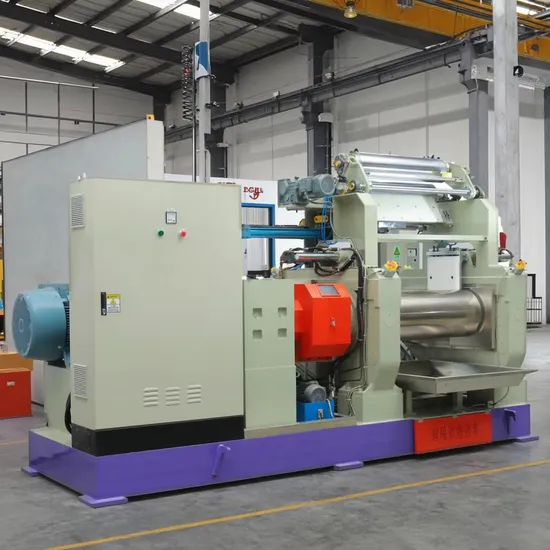

CF-16 / 24 Inch Open Rubber Mixing Mill with Electrically Heated Rubber Sheet

Product Description

1. Mainly used for: natural rubber, synthetic rubber, silicone, EPDM, fluororubber, EVA, PVC, TPE and other materials for molding, tablet production and other processes.
2. Bearing seat: Made of high-quality steel precision casting and processed with high-precision CNC, it has strong load-bearing capacity and good seismic resistance.
3. Bearing lubrication: Adopting a forced circulation lubricating oil system toreduce manual maintenance.
4. Base: Made of high-quality steel plates welded together, with anintegrated structure and good seismic resistance.
5. Roller pitch adjustment: can be customized according to customerrequirements, electric adjustment or oil pressure adjustment.
6. Rubber flipping: Can be customized according to customer. requirements, with an automatic glue flipping system to reduce manual labor intensity.
7. Operation: The equipment is easy to operate and easy to maintain.
8. Safety: Install emergency stop buttons in front and back for quick shutdown.

CF open mill model	CF-400 16inch	CF-450 18inch	CF-550 22inch	CF-560 24inch	CF-660 26inch
Materials/Process	Max feeding quantity (KG/Batch) (Capacity depending on formula materials)
All Rubber/Plastic	40	55	90	150	210
*All production rates should be factory verified.

CF open mill model		CF-400 16inch	CF-450 18inch	CF-550 22inch	CF-560 24inch	CF-660 26inch
Power	kW	45	55	90	110	250
Roller specification	mm	400*1010	450*1200	550*1530	610*1830	660*2130
Front roll line speed	r/Min	18.78	21.1	23.4	25.8	29.8
Maximum roll distance	mm	10	12	15	15	15
Speed ratio	adjustable	1:1.27	1:1.27	1:1.29	1:1.29	1:1.29
Overall weight	kg	8000	10000	22000	22500	32000
Length	mm	4000	4550	5630	6100	6240
Width	mm	1500	1660	1946	2050	3350
Height	mm	1870	2015	2200	2200	2670
*All production rates should be factory verified.

After-sales service In-sale:
Strict implementation of the production schedule, real-time reporting on production progress, so that customers can understand the lates progress.
After-sales:
1. One year warranty under the condition of correct operation of the unit, and ensure the supply of spare parts.
2. Before shipment, we are responsible for the installation and debugging of the equipment, and shoot a video for customers to confirm.
3. After shipment, provide English (or local language) operation manual and installation video of the equipment.
4. Provide video safety operation training for equipment personnel.
5. 24-hour online answer to solve problems.
6. In case of special circumstances, we can provide engineers to visit the site, the specific cost and time agreed by both parties.
