Chinese Tool Turret for CNC Lathe Torno CNC Lathe (BL-H5/H6)
| US$20,000.00-22,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BL-H5/H6
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
8/12 Station
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Chuck Size
6′′/8′′/10′′
Max. Swing Dia. Over Bed
400mm
Max. Turning Length
340mm
Max. Turning Dia.
300mm
Spindle Bore
56/66mm
Spindle End Type
A2-5/A2-6
Spindle Speed
5000rpm
Spindle Motor Power
7.5/11kw
Positioning Accuracy(X,Z)
0.008/1000mm
Repeat Positioning Accuracy(X,Z)
≤0.005mm
Transport Package
Wooden Case
Specification
400*340mm
Trademark
BLIN
Origin
China
HS Code
8458110090
Production Capacity
2000 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description

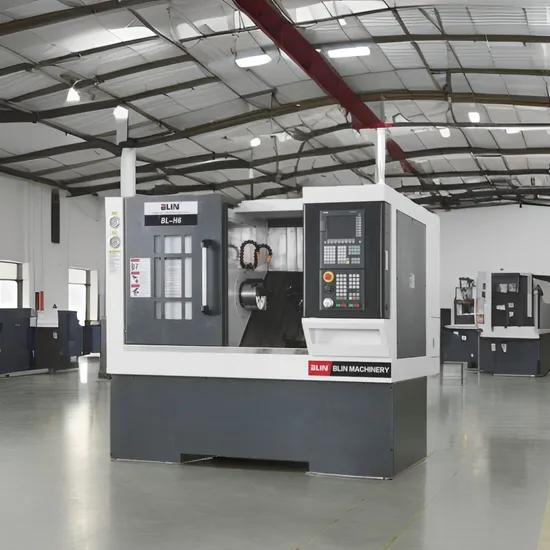

Chinese tool turret for cnc lathe torno cnc lathe (BL-H5/H6)- Adopt TAIWAN technology, most parts adopt GERMAN/JAPAN/TAIWAN brand
- Adopt 45°mono-block slant bed design
- Adopt wide linear guideway,high rigidity
- Adopt modularization design, easy for various especial configuration choice, such as tool setter etc
- Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
- Base adopt multilayer strengthening rib, ensure bed's strength and stability
- Adopt high precision spindle unit(H5 can choose 6000rpm synchronous servo electro-spindle), spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
- Adopt high precision C3 class pre-stretched ball screw,coupled with feeding motor directly by linkager, no gap
Details:
* As option
| Item | Specification | Unit | BL-H5 | BL-H6 | |||
| Capacity | Chuck size | / | collet/5'' chuck* | 6'' chuck/8'' chuck* | 8'' chuck/10'' chuck* | ||
| Max. swing dia. over bed | mm | Φ320 | Φ400 | ||||
| Max. swing dia. over slide | mm | Φ126 | Φ126 | ||||
| Max. turning length | mm | 320 | 340(Gang tool);300(8T tool turret) | ||||
| Max. turning dia. | mm | Φ300 | Φ300 | ||||
| Standard turning dia. | mm | Φ120 | Φ150 | ||||
| Spindle | Spindle bore | mm | Φ36 | Φ46 | Φ56 | Φ66 | |
| Spindle end type | / | A2-4 | A2-5 | A2-6 | |||
| Max. bar through dia. | mm | Φ24 | Φ35 | Φ45 | Φ51 | ||
| Spindle speed | rpm | 6000 | 5000 | 5000 | 4000 | ||
| Spindle motor power | kw | 5.5 | 7.5 | 11 | |||
| X/Z axes | X axes travel | mm | 420 | 460 | |||
| Z axes travel | mm | 320 | 340 | ||||
| X/Z axes linear guideway width | mm | 30/30 | 35/35 | ||||
| X axes ball screw O.D/pitch | mm | Φ25/10 | Φ32/10 | ||||
| Z axes ball screw O.D/pitch | mm | Φ32/10 | Φ32/10 | ||||
| X/Z axes rapid moving speed | m/min | 30/30 | |||||
| Tool post | Tool turret type | / | Gang tool | Gang tool/8T hydraulic tool turret* | |||
| Toolshank size | mm | 20×20, Φ25 | 20×20, Φ25 | 25×25, Φ32 | |||
| Tailstock | Tailstock quill taper | / | None | ||||
| Accuracy | Positioning accuracy(X,Z) | mm | 0.008/1000 | ||||
| Repeat positioning accuracy(X,Z) | mm | ≤0.005 | |||||
| Others | Overall size | mm | 1750×1590×1800 | 2140×1780×1780 | |||
| N.W. | kg | 1900 | 2700 | 2800 | |||
Main parts list:
| Item | Brand |
| Spindle unit | CHIAN top brand synchronous servo electro-spindle/TAIWAN-ROYAL |
| Tool turret | TAIWAN-GSA/YULIN/SWIFT |
| Ball screw | H5: TAIWAN-HIWIN C3 class H6: JAPAN-THK |
| Ball screw bearing | GERMANY-FAG |
| Linear guideway | H5:TAIWAN-HIWIN P class H6: JAPAN-THK |
| Lubrication system | TAIWAN-ISHAN |
| Rotary oil cylinder&chuck | TAIWAN-AUTOGRIP |
| Hydraulic parts | TAIWAN/JAPAN |
| Heat exchanger | Joint-venture |
| Main electricity parts | FRANCE-SCHNEIDER |
Standard configuration:
-SIEMENS 808D ADVANCED CNC controller
-Hydraulic collet/chuck
-Gang tool/8T hydraulic tool turret
Optional configuration:
-SYNTEC/FANUC CNC controller
-Live tool
-Chip conveyor
-Bar feeder
Other models choice:
