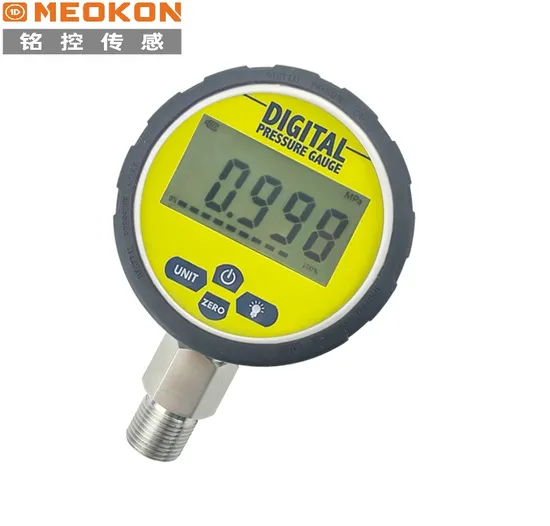

Industry Air Oil Gas Vacuum Digital Pressure Gauge /Manometer
| US$45.98-79.98 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
MD-S280
Measuring Range
Vacuum Gauge
Type
Digital Display
Accuracy
0.2%Fs or 0.4%
Display
Digital
Application
Industrial
Connection Type
Radial Direction
Function
Local Indication Type
Installation Structure
Direct Mounting
Features of Measurement Medium
General Pressure Gauge
Dial Size
80mm
Supply
2 AAA Batteries
Overload Capacity
150%
Backlight Color
White
Long-Term Stabilily
Typical::±0.2%Fs/Year
Transport Package
Carton
Specification
0.35kg
Origin
Shanghai
HS Code
9026209090
Production Capacity
100000/Year
Packaging & Delivery
Package Size
15.00cm * 15.00cm * 8.00cm
Package Gross Weight
0.350kg
Product Description
Product DescriptionThis gauge is a high-precision and intelligent digital pressure gauge. It has a high- precision sensor and display the pressure accurately in real time, equipped with a large size LCD. It has a various of features, such as zero clearing, backlight, on/off button, units, low voltage alarm. And it is convenient to install and easy to operate.
The surface and connector of the product is 304SS. It can be used to measure gas, liquid, oil and other non-corrosive mediums of stainless steel. It applies to these fields: portable pressure measurement, equipment supporting, equipment calibrations.
Technical Characteristics:4 digit LCD showing the pressure accurately in real time
Different pressure units to choose, zero clearing, backlight, on/off
Battery-powered, low-power design keeping working for 12 months
High-precision pressure sensor, the highest accuracy to 0.4%FS,0.2%FS
Pressure percentage display
Application:Machinery and electronic industry
Supporting equipment of instruments
Pressure laboratory
Mechanical engineering automation
Replacement of pointer pressure gauge
Specification:
| Range | Micropressure:(6…10…25)kPa |
| Medium Voltage:(0.4...0.6…4)MPa | |
| High Pressure : (6…10…25) MPa | |
| Ultra High Pressure:(40…60…160)MPa | |
| Compound Range:(-5~5…10…-100~1000) kPa | |
| Absolute pressure:(0~100…250…1000)kPa | |
| Differential Pressure:(0~10…25…40…60…100…250…400…600)kPa (0~1…1.6) MPa | |
| Acc. | 0.2%FS , 0.4%FS |
| Supply | 2 AAA batteries |
| Overload Capacity | 150% |
| Backlight Color | White |
| Dial Size | 80mm |
| Long-term Stabilily | Typical::±0.2%FS/year |
| Operating Temperature | -5~40ºC |
| Compensation Temperature | 0~40ºC |
| Electric Protection | En61326 |
| Sampling Frequency | 5 Times/sec |
| Measurement Medium | Gas,Liquid |
| Connection | G1/2 , G1/4 , NPT1/2 , NPT1/4 |
| Connection Material | 304SS |
| IP Rating | IP50 ( IP54 with protection sleeve) |
