Silent Diesel Power Generator Generator in Dubai 80kw 100kw 150kw 200kw 250kw 300kw with Ricardo Engine Power Generator Set

Product Description

Diesel generator set All design for open, Silent, Supper silent, Soundproof, Trailer, container type
1.Engine brand : Per kins, Vol vo, Mitsubishi, MTU, Deutz , Doosan, FPT, Yanmar, Kubota, Jiangxi, Fawde, SDEC, Weichai, Yuchai, Yangdong, Ricardo and others
2. Alternator : Standard: Waeta; Optional: Leroy-Somer, Marathon, Mecc-alte and others
3.System: Control system, ATS system, remote control system, parallel operation system
4.Control panel : standard:Deepsea; Optional: Smartgen, Comap, Dief
including digital LED screen; genset control model: DSE6120, DSE7320, AMF8, AMF20, HGM6120N, SGC420 and others
5.Radiator :Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
6.Canopy :Generator diesel High-quality steel are thickness canopy -- 2mm to 6mm
7.Material: High density sound-absorbing material -- sound insulation, fireproofing
8.Battery:Generator diesel 12V/ 24V DC VARTA battery with battery charger, battery connects wire, battery switch
9.Fuel tank:Generator diesel 8-10 hours, fuel tank with fuel indicator, long time for working.
10.Protection :Genset high protect class control box and power output box. Waterproof, electric leakage protect, breaker
11.New design: Turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
12.Design: The design of generator diesel is beautiful & practicable. Bottom hole for forklift, water outlet & oil outlet for easy maintenance
13.Door : Double open doors on both sides of the gensets. Large spaces can be used to check for every parts of the engine and alternator.
Part 1: General specification: Diesel generator set description

Main standards	GB/T2820, ISO8528,IEC34, CE standard
Prime output power	From 30KVA to 440KVA
Rated voltage	120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional
Generator Phase and connecting	3 phase, 4 wires or 1 phase, 2 wires
Rated frequency	50Hz@1500rpm or 60Hz@1800rpm
Alternator excited type	Brushless, self excited or PMG optional
Alternator Insulation	Class H
Alternator Protection	IP21 ~ IP23
Voltage regulation	AVR automatic control 1%
Altitude above sea level	≤1000 meters
Ambient air temperature	≤40°C
Relative air humidity	≤ 90%

Part 2. Specification of all FPT engine diesel generator set

50HZ Model list
Model	Standby Power		Prime Power		Engine
	Kva	Kw	Kva	Kw	Engine Model	No. of Cylinder	Emission Level	Displacement(L)
WTA-FP33	33	26	30	24	S8000 AM1.S500	3 L	N/A	2.9
WTA-FP55	55	44	50	40	NEF45AM2.S500	4 L	N/A	4.5
WTA-FP88	88	70	80	64	NEF45SM3.S500	4 L	N/A	4.5
WTA-FP132	132	106	120	96	NEF45TM3.S500	4 L	N/A	4.5
WTA-FP138	138	110	125	100	NEF67SM1.S500	6 L	N/A	6.7
WTA-FP187	187	150	170	136	NEF67TM4.S500	6 L	N/A	6.7
WTA-FP220	220	176	200	160	NEF67TM7.S500	6 L	N/A	6.7
WTA-FP275	275	220	250	200	C87TE3*	6 L	N/A	8.7
WTA-FP330	330	264	300	240	C87TE4*	6 L	N/A	8.7
WTA-FP500	500	400	450	360	CR13TE6W.S550	6 L	N/A	12.9
WTA-FP550	550	440	500	400	CR13TE7W.S550	6 L	N/A	12.9
WTA-FP660	660	528	600	480	CR16TE1W.S550	6 L	N/A	15.9
WTA-FP50	50	40	45	36	NEF45AM1A.S500	4 L	T2	4.5
WTA-FP66	66	53	60	48	NEF45SM1A.S500	4 L	T2	4.5
WTA-FP110	110	88	100	80	NEF45TM2A.S500	4 L	T2	4.5
WTA-FP165	165	132	150	120	NEF67TM3A.S500	6 L	T2	6.7
WTA-FP275	275	220	250	200	CURSOR87TE3F.F550	6 L	T2	8.7
WTA-FP330	330	264	300	240	CURSOR87TE4F.F550*	6 L	T2	8.7
WTA-FP385	385	308	350	280	CURSOR13TE2A.S550	6 L	T2	12.9
WTA-FP440	440	352	400	320	CURSOR13TE3A.S550	6 L	T2	12.9

60HZ Model list
Model	Standby Power		Prime Power		Engine
	Kva	Kw	Kva	Kw	Engine Model	No. of Cylinder	Emission Level	Displacement(L)
WTA-FP35	35	28	33	26	S8000 AM1.S500	3 L	N/A	2.9
WTA-FP96	96	77	88	70	NEF45SM3.S500	4 L	N/A	4.5
WTA-FP138	138	110	125	100	NEF45TM3.S500	4 L	N/A	4.5
WTA-FP150	150	120	138	110	NEF67SM1.S500	6 L	N/A	6.7
WTA-FP220	220	176	200	160	NEF67TM7.S500	6 L	N/A	6.7
WTA-FP300	300	240	275	220	C87TE3*	6 L	N/A	8.7
WTA-FP375	375	300	344	275	C87TE4*	6 L	N/A	8.7
WTA-FP500	500	400	450	360	CR13TE6W.S550	6 L	N/A	12.9
WTA-FP550	550	440	500	400	CR13TE7W.S550	6 L	N/A	12.9
WTA-FP660	660	528	600	480	CR16TE1W.S550	6 L	N/A	15.9
WTA-FP69	69	55	63	50	NEF45SM1A.S500	4 L	T2	4.5
WTA-FP125	125	100	113	90	NEF45TM2A.S500	4 L	T2	4.5
WTA-FP175	175	140	160	128	NEF67TM3A.S500	6 L	T2	6.7
WTA-FP413	413	330	375	300	CURSOR13TE2A.S550	6 L	T2	12.9
WTA-FP440	440	352	400	320	CURSOR13TE3A.S550	6 L	T2	12.9

Part 3. Detail pictures of FPT engine diesel generator set

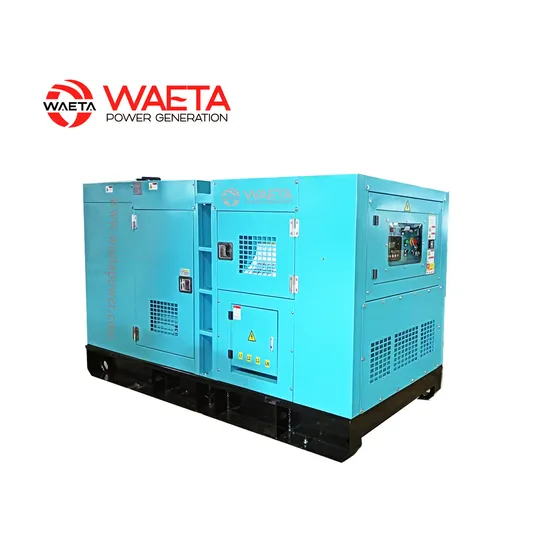

1. Open type and silent (canopy) type diesel generator set pictures
Power range from30kva/24kw - 440kva/352kw
3. Mobile trailer type diesel generator set pictures
Small power 2 wheels trailer, big power use 4 wheels trailer Part 4 :Our advantages for diesel generator set1.Generator diesel High-quality steel are thickness canopy -- 2MM to 6MM
2.Generator diesel high density sound-absorbing material -- sound insulation, fireproofing
3.Generator diesel 12V/ 24V DC battery with charger, battery connects wire
4. Generator diesel 10-12 hours fuel tank with fuel indicator, long time for working.
5. Genset High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
6.New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7.Generator diesel Beautiful & practicably design, Bottom hole for forklift, water outlet & oil outlet for easy maintenance
8. Double open door on both sides of the Gensets.Spacious doors can check for every part of the engine and alternator.
Part 5:Warranty & Certification
warranty : one year or 1000 hours(diesel generator set ) whichever reach first from exfactory date.
1. During the guarantee period-
we will provide the free easydamageable spare parts of alternator caused by our quality of production or raw material.
2. After expiration-
our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.
Our Company
Found in 2010, Fujian Waeta Power Co., Ltd., located in Zhangzhou City, Fujian Province, is specialized in manufacturing diesel generator sets, which is a modern comprehensive manufacturing enterprise integrating research, production and sale. Our products are exported to more than 50 countries, involving Southeast Asia, South America, the Middle East, Africa and other regions, with a good reputation abroad. We keep moving to expand our business all over the world.
Our Factory

Certification: CE, ISO , SASO , EPA , and the others
