Marble and Granite Polishing Machine - Advanced Horizontal Edger for Countertop Finishing

Product Description

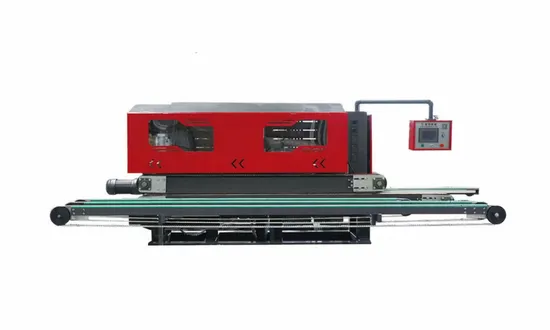

DAFON Horizontal Edger Polishing machine for marble granie countertop
The machine configuration can grind all kinds of slate, stone, microcrystalline stone and other materials according to the thickness, but the bottom is polished, the flat edge chamfering with side throwing, the upper and lower chamfering with side throwing, the R round belt with side throwing, the upper and lower R belts Round belt side polishing, large bevel, horse belly, slate, stone, microcrystalline and other materials with fixed thickness belt polishing on the back. The rough grinding, fine grinding and polishing processes are completed at one time, and the brightness after processing is higher than the brightness of the board surface. After the polishing grinding wheel is worn and consumed, the grinding wheel can be automatically compensated during operation without manual adjustment. The structure is advanced and reasonable, with high precision and high efficiency. The operation is convenient and the maintenance is simple. During the grinding process, the feeding speed and the amount of progress can be adjusted, and the maximum processing is 5m/min. The normal use of the machine is equivalent to the workload of 15 people in normal stone processing, and the process defects caused by workers during processing are eliminated. (No. 1, No. 2, leveling, No. 3 motor upside down, can be adjusted upward 45-70 degrees, No. 4 motor down, can be adjusted down 45-70 degrees, 5.6.7, 8, 9, 10 grinding head processing Flat side, can be adjusted upwards 45-70 degrees simultaneously, 11.12.13, No. 14 motors are upside down, and can also swing up and down to process R circles, 5.16.17, No. 18 motors are down, and can also swing up and down to process R circles) Technical Data

Parameters	Unit	DFWP-18
Standard diameter of polishing wheels	mm	120
Machine overall length	mm	6000
Max. processing thickness	mm	50
Machine overall height	mm	2000
Belt advancement speed	mm/min	1-4
Main motor power	kw	3.5
Grinding tool diameter	mm	120
Standard diameter of chamfering wheels	mm	120
Max. diameter of shaping wheel	mm	120
Min. processing width	mm	100
Worktop height	mm	80
Approx. Weight	Kg	3200
Total power	kw	35
Grinding spindle power	kw	7.5
Sound pressure level	dB	60
Max. processing width	mm	3000
Min. processing thickness	mm	10
Machine overall width	mm	1600
Number of dressing/polishing spindles	nr	8

Processing Photo:
After Sales Service:
We provide skilled and rich experience technicians for installation and after-sale service.

Pre-Sales Service * Inquiry and consulting support. * Configure the best machine line according to customer condition * View our Factory.

After-Sales Service * Training on how to install the machine, training how to use the machine. * Engineers available to service machinery overseas. * Lifetime technology maintenance in free and spare parts supply. Related Products

Packaging & Shipping
The machine will be consolidated tightly and safely within the container and delivered by sea or railway, we offer fast delivery and prompt reaction.
FAQ:
Q: When can you ship my order?
A: Normally 15-20days after advanced payment is received. The exact delivery date will be advised after the order is confirmed. We will try our best to deliver soonest if you need them urgently.

Q: How long is the warranty period for the machine?
A: one year!

Q: How do I install and operate the machine, after receiving it?
A: For simple machines, we will provide sufficient installation, operation, and maintenance instructions, and videos, which will make the whole thing as simple as possible for users. For high-tech machines, our engineers can fly abroad to help you install & debug the machine, and teach you how to operate and maintain the machine properly in the future.

Q: Are you a manufacturer or trading company?
A: We are a manufacturer that has our own factory, technical Dept., marketing, and after-sale service teams.

Q: What is your advantage?
A: Firstly we are a manufacturer, you could get the best price without paying any commission. Secondly, we provide advisory machinery, debugging, maintenance, and fault-handling package services. Thirdly, we offer customized overall solutions and one-stop service. Both our machine and diamond tools are excellent. Fourthly, we give you technical support on not only machines but also diamond tools. Finally, better and lower cost after-sale service could be provided thanks to our worldwide network.
DAFON Machinery is located in Quanzhou City, the hometown of overseas Chinese in southern Fujian Province, we are a professional stone machinery company that integrates design, manufacture, and sale as a whole. We mainly produce curbstone assembly line machines, infrared trimming machines, automatic trimming machines, infrared middle block cutting machines, single-arm multi-blades cutting machines, large gantry cutting machines, bridge stone cutting machines, mining machines, and all sorts of stone cutting machines.
