Affordable CNC Wood Cutting Beam Saw Machine with CE Certification

Product Description

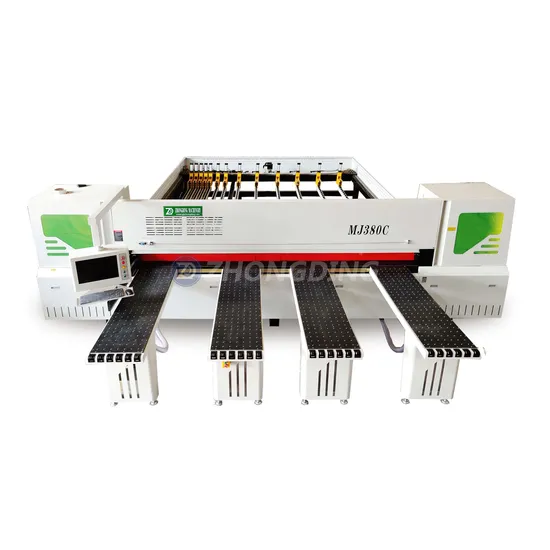

MJ380C CNC BEAM Saw MACHINE
Beam Saw Details
The Max cutting thickness is 80mm, 90mm is optional.
Japan Mitsubishi PLC control system.
High accuracy German electric ruler with ±0.2mm compensation.
Transmission: High accuracy rack and gear to ensure the efficiency for long time using.
Multi pneumatic grippers are positioned by servo driver they are rubber coated will not scratch on the panels. All grippers grip and feed the panels automatically steadily with fast speed.
Cutting Optimization Software and Label Printer: Optimization software: Automatically generate the optimization sawing solution, can save personal calculation time and enhancing material utilization efficiency, which can save labor cost, material and enhance the efficiency. Label printer: one cutting board stick one label with all information on the label, such like customer name, board name, board thickness, width, length, easy for factory to control production.

Specification:

Model	MJ330C	MJ380C
Sawing length	3300mm	3800mm
Sawing thickness	80mm	80mm
Dia. Of main saw blade	355mm	355mm
Axis dia. of main saw blade	60mm	60mm
Rotate speed of main saw blade	3950/4500 rpm	3950/4500 rpm
Dia. of grooving saw blade	180mm	180mm
Axis Dia. of grooving saw blade	30mm	30mm
Rotate speed of grooving saw blade	6300 rpm	6300 rpm
Saw carriage forward speed	0-120 m/min	0-120 m/min
Saw carriage back speed	0-120 m/min	0-120 m/min
Head saw motor	15 kw	15 kw
Grooving saw motor	2.2kw	2.2kw
Saw carriage drive motor	1.5kw	1.5kw
Automatic feeding motor	1kw	1kw
High pressure blower motor	3kw	3kw
Automatic feeding speed	0-40 m/min	0-40 m/min
Operation pressure	5-7kg/cm	5-7kg/cm
Workbench height	850mm	850mm
Net weight	4000kg	5300kg
Dimensions(L*W*H)	6100*6200*1700mm	6450*6800*1900mm

PRODUCT APPLICATION
Company Introduction
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.We are committed to providing one-stop service for factory production. Relying on the favorable geographical advantages of Qingdao Industrial Park, we have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as :polishing machines ,palner machine,press machine etc,which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.Bring our products and services for more than 66 countrys people and customers. We have established 7 complete system to gurantee all process of orders with timely and effective supervision and feedback .Our company has got ISO9001 international system certificate and CE security certificate for different kinds of machines.
Our Missions:
To provide customers with quality products and services, customer satisfaction is our highest criterion
Our Values:
Bring the highest quality and best advice for customer
Commitment to deliver the best we can in an ethical and professional manner
Continuously improve product technology and services to provide more customers with one-stop equipment procurement services.

SUCCESSFUL CASES


CERTIFICATE

PAYMENT AND LOGISTICS
TOP RATED
Recent activities CIFF FWM Shanghai Exhibition September 19,2024
FAQ:
Q:How to order?
A:Ask us → come to map to customize → use the situation to inform → receive our product design recommendation → negotiate details
Festival → Confirm the sample → sign contract/deposit → batch production → goods are ready → balance/delivery → further cooperation
Q:Which transportation method is available?
A:It is a special express delivery of shipping, the China Express Mail, and the Express Express can choose other transportation methods. Please contact us. If you need another shipping route.
