30000m3 Particle Particle Board Production Line

30000m3 Particle Particle Board Production Line

US$300,000.00-1,000,000.00 1 set (MOQ)

Basic Info.

Model NO.
MH-PB300
Product Type
Particle Board Making Machine
Automatic Grade
Semiautomatic
Power Source
Electric
Screw Design
Double-Screw
Certification
CE, ISO
Condition
New
Customized
Customized
Name
Pb Production Line
Machine Included
The Full Complete Production Line
End Product
Particle Board
Particle Board Size
4*8feet or Customized
Panel Thickness
10-30mm
Particle Board Plant
300m3 /Per Day
Machine Color
Be Customized
Transport Package
None
Specification
4*8feet
Trademark
MINGHUNG
Origin
Linyi City, China
HS Code
846592
Production Capacity
10 Sets /Year

Product Description

30000m3 Particle particle board production line
Particle board making machine
What is Particle board? And what is its function and application?
Particle board be made by wood, wood trunks, straw
The major advantage of selecting particle board is that it is a cost-effective option against plywood or medium density fiberboards. Laminated particle boards and veneered particle boards provide decorative looks in low price as compared to plywood.
It provides smooth and flat surface for sticking decorative laminates or wood veneer. This particle board is stronger and aesthetically attractive. Thus laminated particle board and veneered particle boards are now used in mass production of office furniture.
Due to its lightweight property, particle board can be easily transported and handled.
Particle board has more screw holding capacity as compared to MDF, so it is widely used to make furniture which can be assembled using screws.
It requires minimal maintenance and is easy to clean.
Particle boards have thermo-acoustic insulation properties, so they are very much useful in speakers and in false ceiling of auditoriums, theaters, etc.
It is an eco-friendly material as it uses wood waste such as wood chips, sawdust, wooden shavings, and bagasse which is residue of sugarcane after the juice is extracted.
So how to produce particleboard? what is its production step?
Particle board making machine for making particle board, the full line mainly includes:
Wood chipper/crusher → Flaking → Drying → Screening → Gluing → Forming → Continuous pressing → Hot pressing → Cooling → Sanding → Sizing -Packing.
> Drum chipper for crushing wood and barks and trunks into the certaine size chips;
> Flaking machine for make the small chips into wood strands;
> Drying machine for drying the wet wood strands;
> Vibrating screen for screening big wood strands, suitable strands, and chips;
> Gluing machine for make glue on wood strands and evenly distributed;
> Forming line for uniform distribution of the flakes both lengthwise and crosswise as well as the layer formation of top and middle layer flakes over the cross section of the panel;
> Continuous press machine for pre-press particleboard, and make it in a certaine initial strength;
> Hot press for press particleboard in a high pressure and heating temperature;
> Sanding machine for sanding particleboard surface, and make its surface smooth and thickness accurate
Product Parameters
<1> Drum Chipper
Inlet size 240*750mm(H*W)
Blade quantity 2pcs
Knife roll diameter 800mm
Power 132kw
<2> Ring Chipper
Wood strands thickness 0.4-1.0mm
Capacity 5000-8000kg/h
Knife length 449mm
Power 250kw
<3> Triple Pass Drying Machine
Cpacity 10000kg/h
Original moisture ≤80%
End moisture 2%
Power 440kw
<4> Vibrating screen
Screening cloth 2
Screening area 12 m2
Screening capacity 70m3/h
Power 11kw
<5> Gluing
Capacity 500m3 /per day

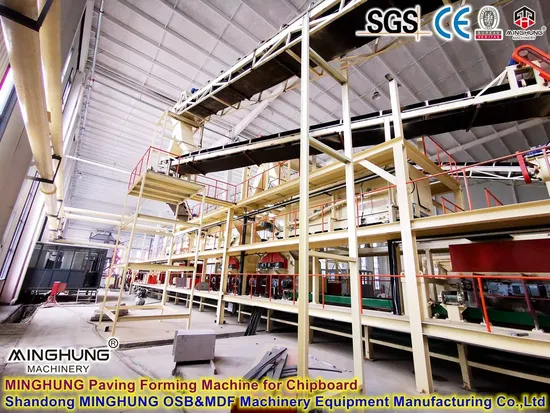

<6> Forming machine
Surface forming machine 2 sets
Capacity 2 *45m3/h
Core forming machine 1 sets
Capacity 65m3/h
Forming width 1300mm
Forming thickness 30-120mm
<7> Continuous press
Convey speed 10-30m/min
Working height 1250mm
Belt width 1500mm
Power 75kw
<7> Hot press
Pressure 1200 ton
Hot plate size 2650*1680*120mm
Layers 22
Heating medium Oil
Heating temperature ≤180ºC
Closing time 10s
<8> Sanding machine
Max sanding width 1300mm
Sanding thickness 3-50mm
Sanding belt size 1350*2800mm

For this production line, it can produce 100000m3 one year.
And we can produced as your capacity requires

Company Profile
We China manufacturer and supplier of Particle board making machine+ MDF board making machine +OSB board making machine. if you want to produce these board, we can offer you the full necessary production line.
With many years production experience, and adhere to continuous innovation and improvement, with specialized R&D center, obtained a number of research and development patents, with experienced technians and engineers, and professional sales team and after-sales team, We have beome one China's high-end Wood based panel machinery manufacturing enterprise.
According to your own conditions like the budget, factory room and other factors, we can offer you the suitable, good and high quality machine for help you produce good quality panel.
For us, we know clearly that only keep machine good quality, can let us develop longer and better. Therefore, we always keep to choose good material and parts to make our machine, and during the whole machine production process, be made by experienced workers, and through many times test and monitor, to make sure each production step is good, to make sure the whole machine is good

Packaging & Shipping

Related OSB making machine
Glue Blander
OSB forming line

After Sales Service
<1> Machine Installation:
We can send engineers go to install machine, degue, and teach your workers
<2> Warranty:
15 months
<3> Factory layout:
After machine production start, we can make factory layout for you
<4> If meet problem when operation machine
Contact us at the first time, our engineers will help check and solve quickly

Welcome contact us for more information if you are interested
