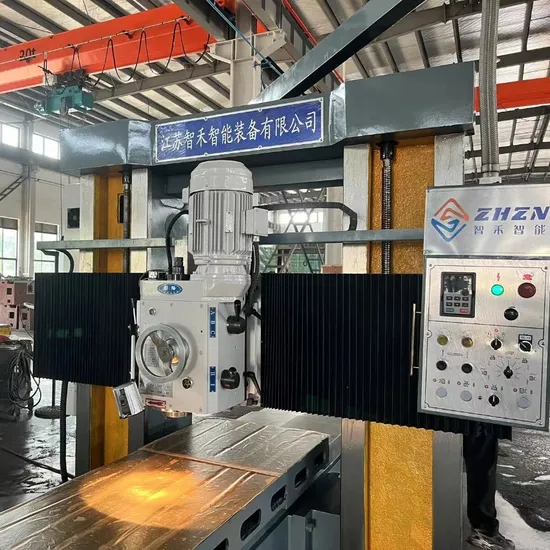

Gantry Type Milling Machine X2020A Worktable 4000X2000

Gantry Type Milling Machine X2020A Worktable 4000X2000

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
X2020A
Type
Planer type Milling Machine
Object
Tool
Structure
Gantry
Milling Cutter Type
Normal
Milling Cutter Structure
Integral
Controlling Mode
Hydraulic
Automatic Grade
Automatic
Precision
Normal Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Color
OEM Acceptable
Transport Package
Plywooden Case
Specification
X2020A
Trademark
SHUANGYANG/ZHIHE
Origin
China
Production Capacity
5000/Year

Product Description

This machine is suitable to process on plane, bevel, groove and so on with various milling cutter, it can process workpiece in high speed under heavy load for the powerful and rigid specicality
Description

X2020A
X2020B
X2020C
Max. Processing capacity(L × W × H)
mm
4000X2500X1300
6000X2500X1500
8000X2500X1500
Distance between columns
mm
2600
2600
2600
Size of worktable
mm
4000X2000
6000X2000
8000X2000
Power of vertical milling heard motor
KW
11
11
11
Power of side milling head motor
KW
7.5
7.5
7.5
Number of milling head
piece
2
2 2
Speed of cutting feed

stepless step change
Range of the spind speed

9 (66-655)
Number of T-slots

9
9
9
Width of the T-slot
mm
28 28 28
max. load
Kg
18000
20000
20000
Weight of the machine
Kg
50000
60000
72000
Overall dimensions of machines (L × W × H)
Mm
10000X4500X3300
14000X4500X3500
18000X4500X3500

WORKSHOP
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as surface grinding machine, CNC surface grinder ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,gantry milling machine , CNC gantry milling machine, CNC gantry grinding machine so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in NO 370 Changjiang North Road, NANTONG ,JIANGSU ,CHINA. If you have interest to visit our factory, pls inform
me ahead, i will arrange and company you your visit period.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
