51.2V 200Ah LiFePO4 Battery
Product Details
Product Details
Product Description

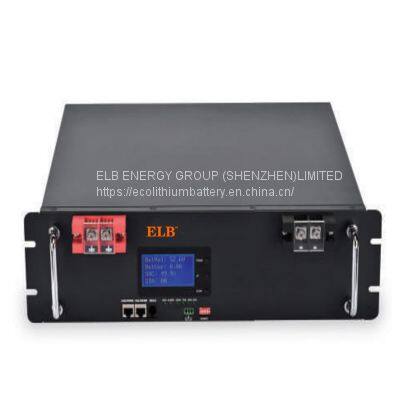

Product DescriptionThe ELB-ES48200 48V 200Ah Battery is a 5kwh energy storage battery, built with LiFePO4 lithium chemistry. Which offer BMS controlled safety, long life,fast-charging performance, also the BMS embeds smart balancing algorithms that control all cell voltages in the battery, making sure they are constantly at the same voltage level, optimizing battery capacity.
| ELECTRICAL SPECIFICATION | |||
| Nominal Voltage | 51.2V | ||
| Nominal Capacity | 200AH | ||
| Stored Energy | 10240Wh | ||
| Resistance | 60 mΩ | ||
| Self Discharge Rate | Maximum Continous Charge Current | 100A | |
| Maximum Continous Discharge Current | 100A | ||
| Charge Cut-off Voltage | 58.4 V | ||
| Discharge Cut-off Voltage | 40V | ||
| MECHANICAL SPECIFICATIONS | |
| Dimensions (mm) | L483×W650×H220 |
| Weight | 78kg |
| Terminal Type | Screwed Terminal |
| Case Material | SS |
| TEMPERATURE SPECIFICATIONS | |
| Discharge Temperature | -20 to 60 °C |
| Charge Temperature | 0 to 55 ºC |
| Storage Temperature | -20 to 55 ºC |
| OTHERS SPECIFICATIONS | |
| Short Circuit Protection | Automatically recover after removal of short |
| Life Expectancy | 6000 times |
The Certification that ELB Got:
ELB Battery certification
Check details in ELB certification center.
