China Manufatcurer Competitive Price Indoor Soft Module LED Column LED Ribbon LED Belt LED Ring pH4 Flexible LED Display

Product Description

We are a professional manufacturer of LED display. We have excellent R&D department,independent design ability.
Our main products include led single color display, indoor full color led display screen, led display, outdoor full-color led to wireless car use screen, etc. Can be used for shopping, banking, bus station, railway stations, urban centers, airports, schools, factories, buses, taxis,creative/flexible screen and so on.
Advertising LED displays, Stadium perimeter LED screen, Mobile led display for mobile media, shopping mall LED billboard for logo showing, bank & stock exchange LED message signs for rates showing, train & bus station, airport, telecommunication LED video wall, stage performances, conference room, etc.

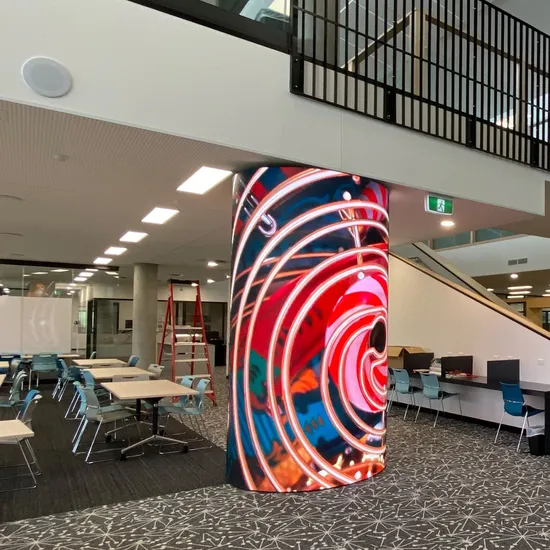

This flexible modules, make into different shape screens are mainly used for shooping mall columns, bars, stage backgrounds, exhibtion halls, KTV, etc.

XFL Series Flexible LED Display Specification
Environmental	INDOOR
Part Number	XFL1.56	XFL1.57	XFL1.6	XFL1.8	XFL2	XFL2.5	XFL3	XFL4	XFL5
Pixel Pitch	1.56	1.579mm	1.667mm	1.875mm	2mm	2.5mm	3mm	4mm	5mm
LED Configuration	SMD1010	SMD1212	SMD1212	SMD1515	SMD1515	SMD2020	SMD2020	SMD2020	SMD3528
Pixel Density	409600dot/m2	401111dot/m2	360000dot/m2	284444dot/m2	250000dot/m2	160000dot/m2	111111dot/m2	62500dot/m2	40000dot/m2
Module size	200X150mm	240X120mm	240X120mm	240X120mm	240X120mm	240X120mm	240X120mm	256X128mm	320X160mm
Module Resolution	128X96dot	152X76dot	144X72dot	128X64dot	120X60dot	96X48dot	80X40dot	64X32dot	64X32dot
Cabinet Size	600*600mm	960X960mm	960X960mm	960X960mm	960X960mm	960X960mm	960X960mm	768X768mm	960X960mm
Cabinet Resolution	384X384dot	608X608dot	576X576dot	512X512dot	480X480dot	384X384dot	320X320dot	192X192dot	192X192dot
Cabinet Weight	25kg / PCS	25kg / PCS	25kg / PCS	25kg / PCS	25kg / PCS	25kg / PCS	25kg / PCS	25kg / PCS	25kg / PCS
IP Rating ( front/back)	IP40	IP40	IP40	IP40	IP40	IP40	IP40	IP40	IP40
Scanning Mode	48S	38S	36S	32S	30S	24S	20S	15S	16S
Brightness Intensity	≥600CD/m2	≥600CD/m2	≥600CD/m2	≥600CD/m2	≥600CD/m2	≥600CD/m2	≥600CD/m2	≥600CD/m2	≥600CD/m2
Viewing Angle	120°	120°	120°	120°	120°	120°	120°	120°	120°
View Distance	2m-15m	2m-15m	2m-15m	2m-15m	2m-15m	2.5m-15m	3m-15m	4m-31m	5m-38m
Gray Scale	14bit	14bit	14bit	14bit	14bit	14bit	14bit	14bit	14bit
Display Scale	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M
Max.Power Consumption	800 W/m²	800 W/m²	800 W/m²	800 W/m²	800 W/m²	800 W/m²	800 W/m²	800 W/m²	800 W/m²
Ave.Power Consumption	260W/m²	260W/m²	260W/m²	260W/m²	260W/m²	260W/m²	260 W/m²	260 W/m²	260 W/m²
Refresh Frequency	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ
Brightness Adjustment	0 - 100 levels adjustable
Control Mode	Synchronous display with control PC by DVI
Support Input	Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
Operation Power	AC100/240 50/60HZ
Operating Temperature	- 20ºC~+50ºC
Operating Humidity	10~90% RH
Operating Life	100,000hours

Started in 2013, Shenzhen XD Vision is a professional manufacturer of LED display, with excellent R&D department, independent design ability. XD VISION is fully capable to provide creative and custom-made LED models beside of standard LED screens.
XD Vision contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts are running efficiently and smoothly. Moreover, delivering qualified product and offering timely pre-after service are also assured by XD VISION team.
XD Vision products include led single color display, indoor and outdoor full color led display screen, advertising poster led display, outdoor full-color led for wireless car use screen, etc. These LED display can be used for shopping mall, banking, bus station, railway stations, urban centers, airports, schools, factories, buses, taxis, monitor center, museums, theaters, cinema, sports field, so on. The types of LED display including Advertising LED displays, Stadium perimeter LED screen, Mobile led display for mobile media, shopping mall LED billboard for logo showing, bank & stock exchange LED message signs for rates showing, train & bus station, airport, telecommunication LED video wall, stage performances, conference room, etc.
XD VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by ROHS, CCC, CE, FCC, CNAS, etc. With high quality, in the past years of development, XD VISION continuous growth, XD has established the Australia Branch and LED displays have been sold to over 120+ countries all over the world.
AUSTRALIA BRANCH
Address: F3, 13-15 Kevlar Close, Braeside VIC 3195, Australia
Q&A
Q1. Could I get a sample order of led display?
A: Yes, sample order is available to check the quality.
Q2: Could we print our own logo on led display products?
A: Of course. You can send us your logo design and info to confirm before production.
Q3: Do you offer guarantee for the led display products?
A: Yes, we offer one year warranty for our products.
Q4: Do you provide technical training (installation training and user training)?
A: Yes, we offer full service, Including pre-sale, sale, after-sales service for your clients Q5: Do you accpet other trade terms, like CIF, CFA, etc.?
A: Yes, please send us your destination address and way of shippment, we can check for you the cost for insurance and freight.
Q6: Do you custom design for different shapes?
A: Yes, we can design and manufacturer custom design LED display according to requirements. Factory and workshop
Aging workshop and Project cases
Constrcution of Creative LED display
For Broadcast Station
For night Club
Round/circluar cylindrial creative LED display,
Flexible and Creative LED display
Round/Sphere/Hexgonal(Honey Comb) LED display
Flexible module for Convex and concave with dancing floor
certificates
Package and delivery
