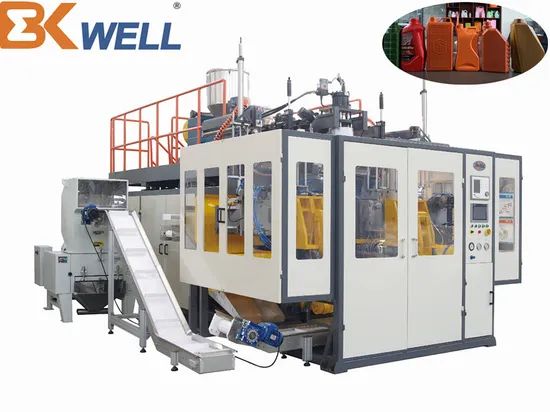

1 Liter Plastic Oil Bottle Extrusion Blow Molding Machine

Product Description

1Litre 2L 3L 5L plastic OIL BOTTLE making machine laundry detergent liquid soap shampoo bottle blow molding machine
Model: BEK-BM02/05/12D BLOW MOLDING MACHINE
Product possible:For producing Plastic OIL BOTTLE/ JERRY CAN /PLASTIC BOTTLE
Max product volume:5L
Plastic material:HDPE LDPE PP
Auxiliary equipment:We can offer complete solutions:blow mould,mixer,vacuum auto-loader,dryer,crusher,water&fans chiller,air compressor, Mould with auto deflashing,Online labeling machine,Take out robot,conveyor,Online leak detector, especially high speed blow molding machine use the lowest tempreture technical.
Performance and advantages
·Suitable for producing 1-5L different size of Plastic jerry can ,gear oil bottle, lubrication
oil bottle, cooling water tank etc.
·Optional multi-layer co-extrusion.
·Optional view strip line system.
·According to the product size,select different cavity of die head.
·According to the different material,optional JW-DB single station
hydraulic screen-exchanger system.
·According to customer's requirement,optional auto-deflashing
on line,scrap conveying on line,finished product conveying on
line.
Product Overview:
tachnical parameters of machine

Model	Unit	BM2D	BM5D	BM12D	BM20D
Max product volume	L	2	5	12	20
Dry cycle	PC/h	900*2	700*2	600*2	600*2
Die head structure	CONTIUNOUS TYPE
Main screw diameter	Mm	65	75	90	90
Max plasticizing capacity (PE)	Kg/h	70	90	160	160
Driving motor	Kw	22	30	45	45
Oil pump motor power	Kw	7.5	11	15	15
Clamping force	Kn	40	70	120	160
Space between platen	Mm	138-368	150-510	240-640	280-680
Platen size W*H	Mm	286*330	8350*400	450*500	500*520
Max. mold size	Mm	300*350	360*400	500*520	560*520
Platen moving stroke	Mm	420	450/520	600/650	650
Heating power of die head	Kw	6	7.5	10	12.5
Machine dimension L*W*H	M	3.0*1.9*2.4	3.7*3.1*2.7	4.2*3.2*3.0	4.*3.2*3.1
Machine weight	T	5	8.5	12	14
Total power	Kw	45	60	90	93

Blow moulding machine/extrusion blow molding machine samples:
Extrusion Blow molding machine running in our customer workshop
Different kind of Control system of machine

parts name	country	Brand
PLC and touch screen	Germany/Austria	SIEMENS/B&R
Contactor	France	Schneider
Inverter	China/Germany	JWELL/Rexroth
Parison control system	Japan/Austria	MOOG100/B&R 300
Pneumatic valve	China	Air TAC
Hydraulic Control System	China	Famous brand
hydraulic valve	China	Taiwai Yuken
Take out robot	China	JWELL
Accumulate type Die head	China	JWELL
Driving motor	Germany	SIEMENS-Beide MADE IN CHINA
Gearbox	China	Famous brand
Screw and Barrel	China

Extrution & Die head
No1.The extruder uses screw and barrel, which is a famous brand" jinhailuo" all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
No2.Bekwell& Jwell supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
Blowpin system
No1.Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
No2.Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
Output system
No1.Take out robot
No2.Scrapping collect together, convey,crusher into one unit
Hydrulic system
No1.Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
No2.optional hydraulic could sace about 50% energy
Open&Closing system
No1.Common three platen and three tie bar struction
Toggle struction
No2.Lubrication system
lubrication system
This auto-lubrication system can lubricate the system with a set cycle automatically.
Electric system
No1.SIEMENS CPU unit
No2.SIEMENS temperature-control unit
No3.SIEMENS digital-output unit
No4.SIEMENS analog-output unit
No5.MITSUBISHI CPU unit
No6.JWELL invertor revolving speed-control
No7.Schneider electric components
