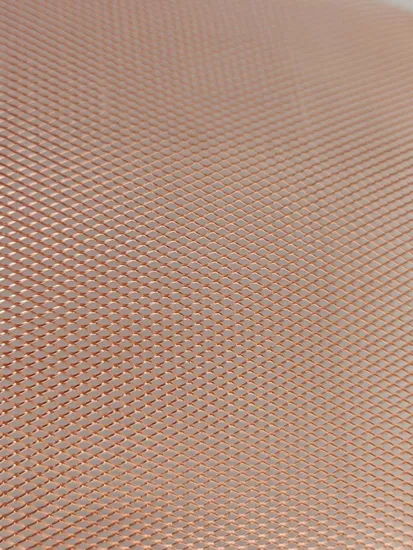

Microgrid Super Thin Wind Energy Composites Carbon-Fiber Cfrp Blades Grounding Structure Lightening Strike Protection Expanded Copper Foils Screen Mesh
| US$580.00 | 1 Roll (MOQ) |
Basic Info.
Model NO.
SW-E
Usage
Protection
Weave Characteristic
Stamping
Stamping Expanded Metal Mesh Category
Expanded Metal Mesh
Specifications
Roll
Weight
Miniature
Material
Aluminum Copper
Common Width
60cm, 90cm
Feature
Surface Protection Down Conductors
Lwd
0.100 Inch, 0.125 Inch
Thickness
0.076mm, 0.102mm, 0.203mm, 0.254mm
Length
30m, 50m
Site of Action
Carbon Fiber Blade Composite Turbine Nacelles
Transport Package
Water-Proof Paper, Air Bubble Film, Carton
Specification
195, 317, 420, 815 g/m2
Trademark
SW
Origin
China
HS Code
7419994000
Production Capacity
50 Ton/Month
Packaging & Delivery
Package Size
50.00cm * 13.00cm * 15.00cm
Package Gross Weight
5.000kg
Product Description
Precision expanded metal screen,also names diamond hole mesh,the process is using metal sheet by machine stamping and drawing .Expanded metal mesh specification
| Item | Size (mm) |
| Mesh thickness | 0.04-5.0 |
| Mesh hole | 0.3x0.6,0.5x1.0,0.6x1.2,0.8x1.6,1x2,1.25x2.5,1.5x2,2x2.5,1.5x3,2x3,2x4,3x6,4x8,5x10,6x12,8x16,10x20,15x30, 20x40,30x60 etc |
Expanded metal mesh material :stainless steel,aluminum,copper,silver,nickel,titanium,etc.
Expanded metal mesh can be used in many kinds of industries,such as aerospace,construction mesh,titanium anode,chemical industry,filter media,hydrogen making,speaker griller, current collector of battery, EMI/EMP shielding,wind energy etc.
Expanded copper mesh and Expanded aluminum mesh applied in aerospace main usage is :lightening strike protection in composite aircraft structure.
Expanded copper mesh and Expanded aluminum mesh applied in wind energy is surface protection and down conductors in wind blade construction for lightening strike.
| SW Product code | 3CU-100 | 4CU-125 | 8AL-125 | 10CU-125 |
| Weight-LBS/SF(+10%) -GMS/SM(+10%) | 0.040 | 0.086 | 0.065 | 0.167 |
| 195 | 420 | 317 | 815 | |
| Original expanded thickness (+0.001") (+0.25mm) | 0.003inch | 0.004inch | 0.008inch | 0.010inch |
| 0.076mm | 0.102mm | 0.203mm | 0.254mm | |
| Long way of the diamond LWD (+5%) | 0.100inch | 0.125inch | 0.125inch | 0.125inch |
| 2.54mm | 3.175mm | 3.175mm | 3.175mm | |
| Open Area (+5%) | 70% | 53% | 42% | 64% |
Micro copper mesh advantage: good conductivity and heat transfer performance, non-magnetic, corrosion resistance,wear resistance,strong sound insulation,signal shielding etc.
Micro mesh package:water-proof paper, air bubble film,carton.Anping County Shanwei Metal Products Co.,Ltd , expanded micro mesh professional manufacturer.
