Compact Tractor Loader Backhoe Attachment for 15-25HP Multi-Purpose Digging Farming Implements

Compact Tractor Loader Backhoe Attachment for 15-25HP Multi-Purpose Digging Farming Implements

US$1,000.00-2,000.00 1 Piece (MOQ)

Basic Info.

Model
Lw
Transport Package
Iron Pallet
Trademark
NEWBANG
Origin
China
Production Capacity
10000PCS/Year

Packaging & Delivery

Package Size
200.00cm * 90.00cm * 100.00cm
Package Gross Weight
360.000kg

Product Description

Product Description

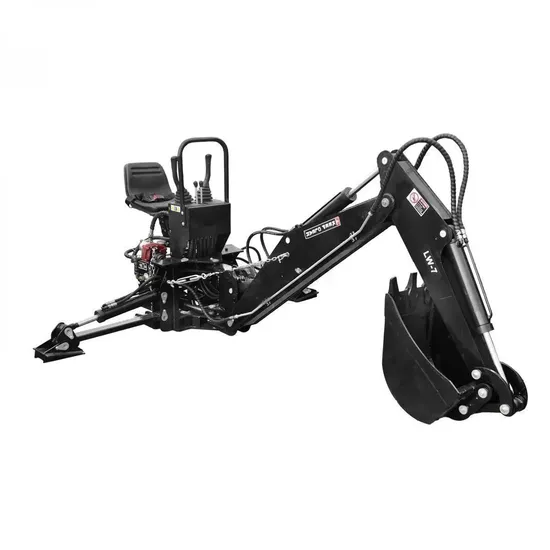

small garden tractor loader backhoe for 15-25hp tractor
The tractor excavator consists of its own hydraulic pump, frame, lifting arm, hydraulic cylinders, stabilizing supports and bucket, and a control cockpit with an operator's seat. The excavator's hydraulic system is driven by its own hydraulic pump connected to the tractor's PTO/PTO shaft and has its own oil tank , thanks to which the excavator has an independent oil system ,which means that the tractor's hydraulic oil does not mix with the hydraulic oil. excavators. Product Parameters
Backhoe Model


LW-5
Matching Tractor

hp
15~25
Max.Digging Depth
A
mm
1650
Max.Unloading Height
B
mm
1530
Max.Digging Height
C
mm
2600
Working Radius
D
mm
2300
Ground Clearance
E
mm
450
Min.Transporting Width
G
mm
1150
Max.Width of Supporting Legs
H
mm
2100
Bucket Width

in.
14
Bucket Capacity

m3
0.03
Weight

kg
360
PTO Hydraulic System
6/8/21 Splines(Option)
Thumb Grab
Option

Company Profile
Yancheng Newbang Machinery Co., Ltd. is one of the major tractor implement and ATV implement manufacturers in China. Our products range: rotary tiller, backhoe, mower, post hole digger, wood chipper, log splitter, box blade with rippers and so on (30 series and more than 200 models). Newbang's implements are CE and ISO9001 certified and our products are mainly exported to North America, South America, Europe,Asia, etc. We get a good reputation from the worldwide customers.
FAQ
Q1. what's your main products? A: Our products are covered almost all farm machines. Q2: How long is the delivery date? A: In general, we can ship the goods within 30-45days after receiving your payment. Q3. Do you have after-sales service? A: Yes, all of our products have 12 month quality assurance to make sure that we supply you best quality. Q4. Can you print my brand name on it? A: Of course, you just need to send us the picture of your brand. Q5. what's your payment term? Usually 30% T/T deposit for the order after confirming the contract, and then 70% balance before shipping or against copy of B/L. Q6. Can I mix different models together? A: Yes, you can mix different products or models in a container and we will try our best to use the container place. Q7. what your terms of payment? A:T/T, L/C, and western union etc
