DVB-S/S2 Handheld Satellite Finder H. 264 Hot Sale with Best Price

DVB-S/S2 Handheld Satellite Finder H. 264 Hot Sale with Best Price

US$50.00
1-49 Sets
US$45.00
50-99 Sets
US$40.00
100+ Sets

Basic Info.

Model NO.
WS-6933
Usage
TV, Satellite Signal
Wave Range
Ku Program
Type
Digital
Transport Package
by Sea, by Air, by Express, by Rail
Specification
80*160*40MM
Trademark
SATLINK
Origin
China
HS Code
9030401000
Production Capacity
80000

Product Description

WS-6933 is a fully DVB-S/S2 compliant handheld satellite finder.With it's compact size,light weight,intuitive user's interface,long battery operational hours and rich feature ser,the finder provides all functions needed for installation and verification of digital TV service to residential homes or multi-dwelling units.

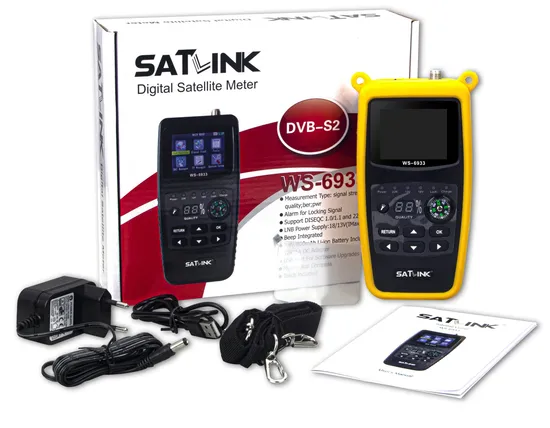

Open the package and make sure it includes all below items, if any missing, please contact the reseller for replacement.
4. Adaptor 5. AV Cable
Digital Satellite Meter
User's manual
Sillicon Rubber Case
• Digital meter for signal strength and quality • Sound and Light Alarm for Locking Signal
• Auto Calculate Angle of AZ ,EL
• Supports DISEQC 1.0/1.1 ,0/22khz Tone
• Beep Integrated
• LNB short protect
• Support mechanical compass
• 7.4V/800mAh Li-Ion Battery Included • Software upgrade via USB port
• Easy to carry

TECHNICAL SPECIFICATION
TRANSMISSION STANDARDS
DVB-S/S2
SATELLITE INPUT/DEMODULATION
Connector Type
F Type
Input Frequency
950 to 2150 MHz
Signal Input Level
-65 to -25 dBm
Band Switch Control
22KHz
LNB Supply
13V/18V, IMax300mA
Demodulation Type
QPSK /8PSK /16APSK
Symbol Rate
2<Rs<45Mband(SCPC/MCPC)
LCD FEATURES
LCD Type
TFT Positive transflective
Number of Dots
240(RGB)*320
Active area (WxH)
36.72(W) * 48.96(H)MM2
DATA SERVICE PORT
Connector
USB
Data protocol
USB to RS-232
POWER SUPPLY
Li-Ion Battery
7.4V/800mAh
Adapter
OUTPUT: DC12V/1A
INPUT: 100-240VAC 50/60Hz
Power consumption
Max. 5W
PHYSICAL CHARACERSTICS
Size (W x D x H)
8x16x4(cm3)
Net Weight
0.25kg
