Euro V Towable Backhoe ATV Backhoe 9HP Portable Backhoe Digger

Product Description

Made in China, Sold to the world
Versatile, Easy, Affordable, Powerful, Reliable

ATV Series Wheel Backhoe product description
ATV Series Wheel Backhoe Product Description

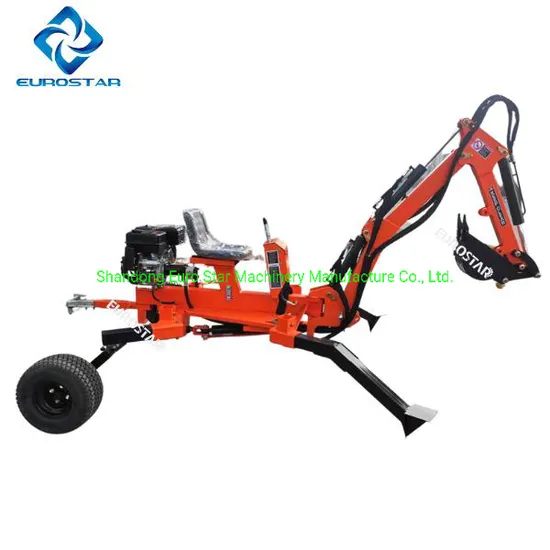

ATV series Backhoe Digger for all types of Groundwork in confined Spaces. This little unit has the capacity to handle much more than you'd think it would. The backhoe digger digs 2050mm deep, with a serrated digger bucket 220mm in width.
ATV seriesbackhoe digger with its own power source in the form of a 9 hp petrol motor with recoil starter, Two-lever hydraulic valve for simple and flexible excavation. Wheels for moving with an ATV or another vehicle with a 50 mm ball coupling.When the machine has to be moved, the wheels are fitted to the back making it easy to transport; when excavating, the wheels are fitted at the front with the stabilizers at the back and the machine is then moved by dragging it backward or forwards using the first boom and outer boom.
Main sales territory: regions Europe, the United States, Russia, Canada,Ukraine, South America, Africa, southeast Asia and Australia.
ATV Series Wheel Backhoe Product Selling Points
1. It is used for dicthing in farms and grazing lands, trenching,digging pool, cleaning waterways as well as assistant excavating work in construction and building roads.
2. Hydraulic transmission is used. featured with compact structure. Flexibility, convenient operation and quick mounting and dismounting.
3. Hydraulic feeding system,with free flow valve,easy to control feeding rate,featured with compact structure.
4. Bucket size can be chosen, 200mm, 300mm, 400mm, 500mm, 600mm wide extra buckets.V type bucket,thumb,ditching finger also be availible.
5. backhoe loader can be towable by ATV,UTV eg,easy tranport,which is use for small digging and construction work.
6. Different engine opotion,9-15hp gasoline or diesel engine.
7. Various attachments,220mm.300mm,400mm,500mm,600mm,V type bucket,thumb,ditching finger also be availible.
8. CE approved,reliable quality.
ATV Series Wheel Backhoe product technical parameters

Model	ATV-9
Product Name	9HP gasoline engine
Bucket Swings	120° For real maneuverability
Deepth	Digs 7FT. Deep with 8FT. Reach
Dumps	Dumps at 3½FT
Bucket Size	12''(300mm)bucket
Using	Bucket action pulls it around jobsite
Capacity	Tows easily on 3500-LB
Coupler Size	2"ball for easy towing
Package Size	48.03"×40.55"/224×99×84cm
G.W.	1176.21LB/534KGS
N.W.	982.38LB/446KGS

ATV Series Wheel Backhoe details show
LW series Backhoe product technical parameters

Model		LW-4		LW-6		LW-7		LW-8		LW-9
Specification		Inch	Metric	Inch	Metric	Inch	Metric	Inch	Metric	Inch	Metric
Tractor HP		20-30hp		30-40HP		30-45HP		45-60HP		60-80HP
3-point Linkage		Cat-1		Cat-1		Cat-1		CAT-1&2		CAT-1&2
Structure Weight		771lb	350kg	1060lb	480kg	1100lb	500kg	1280lb	580kg	1370lb	620kg
A	Digging Depth(two foot flat bottom)	4'	1200mm	5.74'	1750mm	6.4'	1950mm	7.38'	2250mm	8.36'	2550mm
B	Reach from center line of Swing pivot	7.55'	2300mm	8.53'	2600mm	9.51'	2900mm	10.5'	3200mm	11.8'	3600mm
C	Loading Height(bucket at 60°)			5.64'	1720mm	6.03'	1840mm	3.66'	1930mm	7.25'	2210mm
D	Transport Height(maximum)	4.1'	1250mm	6.03'	1840mm	6.75'	2060mm	6.98'	2130mm	8.13'	2480mm
E	Extend Height	4'	1200mm	9.41'	2870mm	10.2'	3110mm	10.62'	3240mm	11.77'	3590mm
F	Loading Reach(bucket at 60°)			3.11'	950mm	3.87'	1180mm	3.74'	1140mm	4.46'	1360mm
G	Transport Overhang			3.54'	1080mm	3.64'	1110mm	4'	1220mm	4.16'	1270mm
H	Undercut			2.4'	730mm	2.72'	830mm	1.54'	470mm	1.7'	520mm
I	Bucket Rotation			180°		180°		180°		180°
J	Stabilizer Spread(up position)			4.3'	1310mm	4.3'	1310mm	4.3'	1310mm	4.3'	1310mm
K	Stabilizer Spread(down position)	6.23'	1900mm	4.3'	2100mm	6.9'	2100mm	7.67'	2340m	7.67'	2340mm
L	Swing Arc	180°		180°		180°		180°		180°
M	Bucket width	250mm		300mm		400mm		450mm		500mm
N	Bucket cubage	0.028		0.036		0.045		0.052		0.063

LW series Backhoe details show
TZ series front end loader details display
Front end loader and backhoe container shipping link display
Full range of tractor products display
Our company produces other agricultural machinery display
Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.
