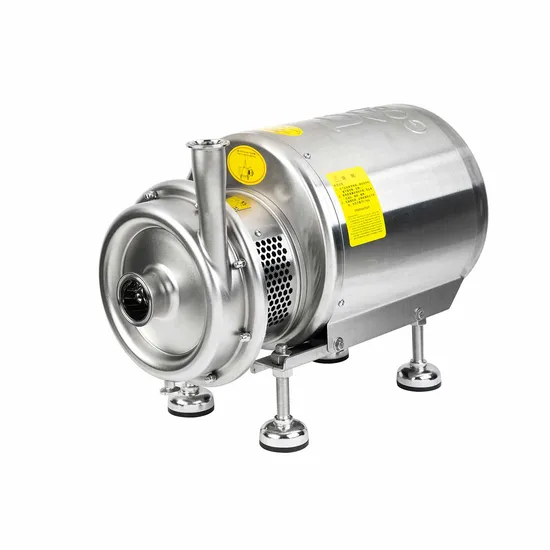

2.2kw Stainless Sanitary Centrifugal Pump Dairy Pump with Electric Motor
| US$783.00-887.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GKH-10T
Max.Head
25m
Max.Capacity
160L/Min
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
Low Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Horizontal Split Pumps
Mounting Height
Since Irrigation Centrifugal Pumps
Impeller
Semi-Open
Usage
Pump, Pumps, Circulating Pump
Rated Power
2.2kw
Rated Voltage
380V
Material
AISI 304 / AISI 316L Custom
Motor
ABB
Liquid Concentration
Low
Transport Package
Plywood
Specification
39KG
Trademark
GOBOR
Origin
China
HS Code
8413709990
Production Capacity
1000PCS/Year
Product Description
Stainless steel sanitary centrifugal pump uses 304 or 316L material and mirror polishing process, is widely used in food, dairy, pharmaceutical and other industries. The GKH series centrifugal pumps are used to transport low density liquids such as water, milk, low viscosity potion. It is provided with a set of externally mounted single end mechanical seal or water injection mechanical seal. The static ring of the mechanical seal is made of stainless seal, silicon carbide or tungsten alloy. And the dynamic ring is made of stainless seal, carbon, graphite or tungsten alloy. According to customer demand, it can also be equipped with the double end mechanical seal.
Specification:
| Model in Our Company | GKH sanitary centrifugal pump |
| Motor Power | 0.37KW~37KW |
| Rated Flow | 1~150T/H (16~2500L/min) |
| Rated Head | 15~55m |
| Working Temperature | -10ºC~140ºC |
| Inlet Diameter | Φ32~Φ102 (mm) |
| Outlet Diameter | Φ25~Φ102 (mm) |
| Voltage | AC220~240V, AC380~420V, 50/60Hz custom |
| Motor | ABB/Chinese Motor |
| Connection | ISO ferrule joint, threaded union, flange |
| Inner Surface | Mirror polishing Ra0.4 |
| Material | AISI 304, AISI 316L |
| Delivery Time | About 7-15 days after deposit |
Feature: Low noise and no dead ends.
Ra0.4 high smooth finish.
Adjustable Angle pipe
Pure stainless steel design.
Flushed single or double mechanical seal.
With stainless steel base plate & adjustable feet.
Different drives and devices:
1) Manual adjustment, continuously variable transmission.
2) Variable - frequency motor adjustment.
3) Fixed speed output transmission.
Adjust the impeller face angle before screwing in.
GKH sanitary centrifugal pump selection table(support customization)
