Oturncnc 5 Axis Vmc CBS300 CNC Milling Vertical Machining Center with Siemens

Product Description

Product Description

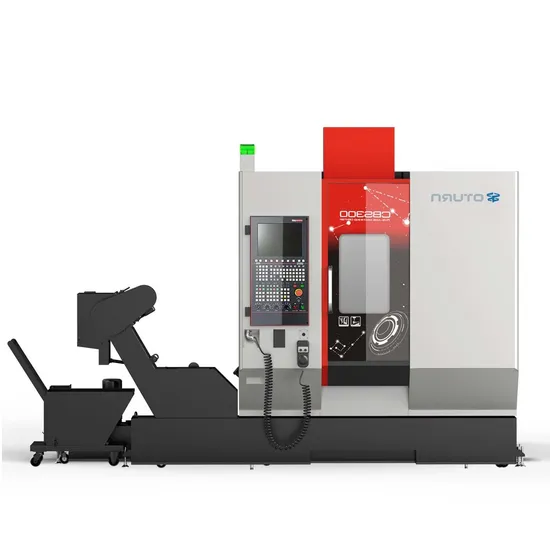

The high-speed precision five-axis bridge type machining center CBS300 developed has the characteristics of high rigidity, high precision and high efficiency processing. CBS series machine tools adopt a bridge structure layout, and the XYZ axis movement is not affected by the AC axis, which can maintain high-precision processing for a long time; the X/Y/Z/A/C axes are fully closed-loop control to ensure high-precision processing; the whole machine adopts finite element analysis Each component is designed to provide the best overall stable performance.
The three-axis rapid displacement is 48 M/min, the T-T tool change time is only 5 seconds, and the tool magazine is fully loaded for 24 hours without alarm. The running machine and the 3-dimensional inspection of each machine's trial processing sample ensure the high efficiency, continuous stability of the machine tool after leaving the factory. . It is suitable for various two- and three-dimensional concave and convex models with complex shapes that require 5-axis linkage for one-time processing. It is more suitable for both small and medium-sized batches of multi-variety processing and production, and can also be used in automatic lines for mass production.
Adopting the latest C80 plus system, 15-inch large LCD screen, tool path dynamic graphic display, intelligent alarm display, self-diagnosis and other functions make the use and maintenance of the machine tool more convenient and faster; the high-speed bus communication method greatly improves the data of the CNC system Processing power and control performance, the program storage capacity is increased to 4G, and the pre-reading capability is increased to 3000 lines/second, making it easy to read data quickly and accurately. Efficient transfer and online processing of large-volume programs
Product Parameters

Item		Unit	specification
travel	X/Y/Z axis travel	mm	300×350×250
	Distance from spindle end face to worktable surface	mm	130-380
	The maximum distance between the A-axis 90° spindle center and the C-axis disk surface	Mm	250
	Maximum processing size	mm	φ300*250
C-axis turntable	Disk diameter	mm	Φ300
	Turntable T-slot/guide key width	mm	12H7/20H7
	allowable load	kg	50
Three-axis feed	X/Y/Z axis rapid displacement	m/min	48/48/48
	Cutting feed rate	mm/min	1-24000
spindle	Spindle specifications (installation diameter/transmission mode)	mm	120/built in
	Spindle taper	mm	E40
	Spindle speed	r/min	30000
	Spindle Motor Power (Continuous/S3 40%)	kW	11/13.2
	Spindle Motor Torque (Continuous/S3 40%)	N.m	11.5/13.8
Tool magazine	Magazine capacity		16T
	Tool change time (T-T)	s	5
	The max tool diameter (full tool / empty tool)	mm	80/120
	tool length	Mm	200
	tool weight	kg	3
guide	X-axis guideway (size/number of sliders)	mm	30/2
	Y-axis guideway (dimensions/quantity of sliders)		35/2 (main guide) 30/2 (auxiliary guide )
	Z-axis guideway (dimensions/quantity of sliders)		25/2
Three-axis transmission	X linear motor thrust (continuous/max)	N	1097/2750
	Y linear motor thrust (continuous/max)	N	3250/8250
	Z linear motor thrust (continuous/max)	N	1033/1511
five axis	A-axis rated/max speed		47/70
	A-axis rated/max cutting torque		782/1540
	C-axis rated/max speed	rpm	200/250
	C-axis rated/max cutting torque	Nm	92/218
	A-axis positioning/repeatability	arc-sec	10/6
	C-axis positioning/repeatability	arc-sec	8/4
Three-axis accuracy	positioning accuracy	mm	0.005/300
	Repeatability	mm	0.003/300
lubrication system	Lubrication unit capacity	L	0.7
	Lubrication type		Grease lubrication
cutting fluid	tank capacity	L	300
	Cutting pump parameters		0.32Mpa×16L/min
other	air demand	kg/c	≥6
	Air source flow	mm3/min	≥0.5
	battery capacity	KVA	25
	Machine Weight (Comprehensive)	t	4.8
	Mechanical Dimensions (L×W×H)	mm	3580×3030×2360
