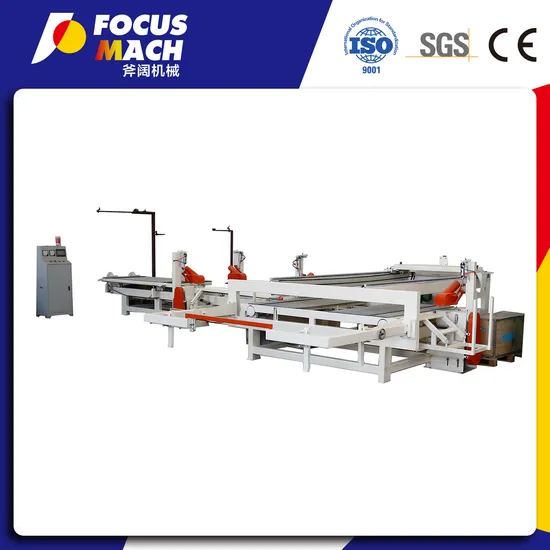

Customized Plywood Four Sides Trimming Saw for Making Plywood Veneer

Product Description

Product Description

This product is suitable for trimming of wood-based panels. It is a big leap from manual cutting to automatic cutting. Compared with ordinary hand push saws, this machine has five characteristics: precision, high efficiency, energy saving, labor saving, and environmental protection. The machine adopts intelligent numerical control design. The saw blade can automatically adjust the rotation speed according to the sawing condition without stopping the saw blade. At the same time, it can realize the automation of stacking and scrap removal, safe and convenient operation, stable operation and low noise. High quality, smooth end face of the board, no edging, standard size of finished products; production efficiency is greatly improved. The machine's biggest highlights: intelligent cutting, safe and stable operation, accurate and efficient.
1. The main structure is solid, the fuselage is made of high-quality steel, and has high stability without deformation.
2. The operating system is controlled by PLC, which realizes intelligent cutting and automatic stacking, saving labor and effort;
3. The main electrical components are "Omron", "Schneider" and other brands, which are safe and reliable;
4, using high-precision wear-resistant guide rails and high-intensity infrared positioning, high cutting accuracy, diagonal error ≤ 0.5mm;
5. It adopts pre-installed board device, which only needs two people to operate. The output of 16% per shift can reach 2000 ~ 3000 sheets, which is highly efficient and energy saving;
6. Equipped with a waste removal mechanism to automatically remove the cutting scrap;

Product Parameters

Machine Name	Customized plywood Four Sides Trimming Saw
Machine Model	FMJB4-8A
Working dimension	2440x1220mm
Diameter of saw blades	Ф250-Ф315mm
Working thickness	3-50mm
Rotary speed of the main saw blades	6500-7000r/pm
Overall dimension	8500x5500x1020mm
Machine weight	7200Kgs
Total motor power	43Kw
Remark	Include the automatic stacking system with lifting table and 4Pcs saw blades
