High Speed Full Automatic PE LDPE HDPE Blown Film Extruder Bag Film Blowing Machine Extrusion Film Blowing Machine

Product Description

The film blowing machine used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%. The screw and material barrel adopt 38 crome- molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.
Meanwhile,this machine is able to produce sheet film with multi rolls per time which can save your labour cost and increase production capacity.
Our blown film machine is easy to operate, energy-efficient, and capable of producing films with high optical clarity and mechanical strength. It is able to handle a wide range of plastic materials, including low-density polyethylene (LDPE), high-density polyethylene (HDPE), and linear low-density polyethylene (LLDPE)
With a reliable plastic film blowing machine machine, our machine can meet customers' production goals with ease and produce high-quality plastic films that meet their customers' expectations.
Optional Equipment:
1. Auto-loader
2. Corona treater
3. Rotary die head
4.Double winder
5. Air compressor
6. High speed screen changer
Here is the machine specifications for reference

Model	XG-RD50	XG-RD55	XG-RD60		XG-RD65		XG-RD75
Suitable material	HDPE/LDPE/LLDPE
Film width	100-600mm	100-800mm	100-1000mm		100-1200mm		100-1500mm
Film thickness	0.006mm-0.10mm(if you have special request please clarify)
Max.Output capacity(kg/hr)	HD:35kg LD:40kg	HD:45kg LD:55kg		HD:55kg LD:70kg		HD:70kg LD:90kg		HD:90kg LD:110kg
Screw diameter(mm)	50mm	55mm		60mm		65mm		75mm
Screw L/D Ratio:	30:1-32:1	30:1-32:1		30:1-32:1		30:1-32:1		30:1-32:1
Driving motor(kw)	11	15		18.5		22		37
Screw material	Full bimetallic	Full bimetallic		Full bimetallic		Full bimetallic		Full bimetallic
Barrel material	38CRMOALA	38CRMOALA		38CRMOALA		38CRMOALA		38CRMOALA
Cylinder cooling	250wx1	250wx2		250wx2		250wx2		250wx4
Temperature control(zone)	5	5		6		6		8
Die head size(mm)	60/80mm	80/120mm		80/150mm		120/220mm		350mm
Air blower(kw)	1.5	2.2		3		4		5.5
Roller width(mm)	700	900		1100		1300		1600
Take up speed(m/min)	10-80	10-80		10-80		10-80		10-80
Take up motor(kw)	1.5	1.5		2.2		2.2		3
Winding motor(N/M)	6	6		10		10		16
Winding speed(m/min)	10-60	10-60		10-60		10-60		10-60

Production procedure
Sample film

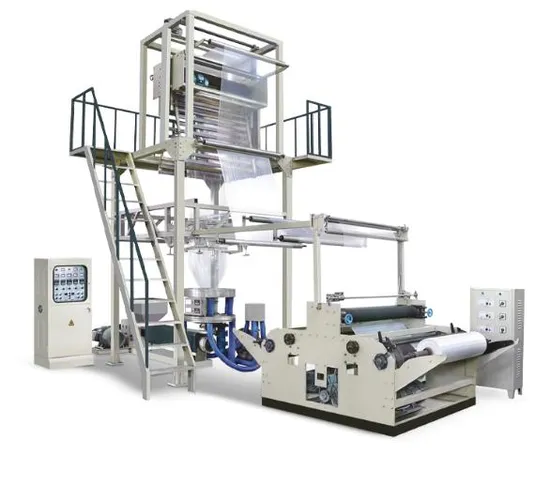

Machine outlook
Rewinding unit
Extruder part
Take up unit
Machine package and shipment
Our service Team
Factory layout
FAQ
