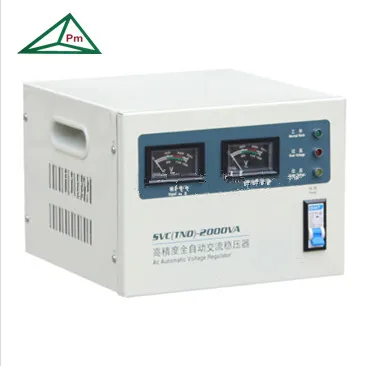

Power Supply Single Phase SVC 2000va AC Automatic Voltage Regulator with CE Certification for Home Appliance 220V/208V/120V

Product Description

Introduction of products.PM series single-phase high-precision automatic AC voltage regulator consists of contact auto-connected voltage regulator, servo motor, automatic control circuit, etc. When the power grid voltage is unstable or the load changes, the automatic sampling control circuit sends out The signal drives the servo motor to adjust the position of the carbon brush of the auto-regulator, so that the output voltage is adjusted to the rated value and reaches a stable state.This product has the characteristics of undistorted waveform, reliable performance, long-term operation, etc., with delay, over Pressure, undervoltage protection, etc. It can be widely used in any place where electricity is needed for stable voltage, and it is an ideal regulated power supply to ensure normal operation of your electrical equipment. Technical parameters

Input voltage	150V-250V
Output voltage	220V/110V(0.5kVA-3kVA) 220V(5kVA-30kVA)
Voltage regulation accuracy	Phase voltage 220V±3% 110V±6%
frequency	50Hz/60Hz
Overvoltage protection	246V±4%
Adjust the time	<1 second (when input voltage changes by 10%)
Ambient temperature	-10ºC~+40ºC
Temperature rise	<60ºC
Waveform distortion	No additional waveform distortion
Load power factor	0.8
Dielectric strength	1500V/1min
Insulation resistance	>2MΩ

Outer size/Packaging
Model/Specifications	Size (cm)	Package (cm)		Package Quantity (piece)	Gross Weight (kg)
PM-1005	19 × 17 × 13.5	44 × 24.5 × 35		4	15
PM-101	22 × 20.2 × 16	49 × 28.5 × 40		4	20
PM-101.5	22 × 20.2 × 16	49 × 28.5 × 40		4	26
PM-102	24.5 × 25.8 × 19.5	60.5 × 35 × 25.5		2	17
PM-103	23.5 × 29 × 23	61.5 × 38.5 × 29		2	23
PM-105	23 × 31.5 × 27.5	39.5 × 32 × 35		1	13
PM-110 (ultra-low pressure)	31 × 34.5 × 53.5	45 × 42.5 × 62		1	33
PM-110K	31 × 34.5 × 53.5	45 × 42.5 × 62		1	36
PM-115K	28 × 38 × 77	49 × 40 × 86.5		1	52
PM-120K	32.5 × 38 × 77.5	49 × 44.5 × 88.5		1	59
PM-130K	37.5 × 41.5 × 78.5	53 × 49 × 88.5		1	74

Package
About us
Shenzhen Xin Poming Power Equipment Manufacturing Co., Ltd is established in Guangdong Province of China in 2007, which manufactures and sells voltage regulators, transformers, UPSs, frequency converter, DC power sources and other power products and can provide systemic power solutions for customers with it's complete product list For clients around the world .
Clients
FAQ(Frequent Asked Qestions) Q1: What is the MOQ ? A1: 1 set. Q2: Is OEM/ODM available? A2: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements. Q3: Can we put/show our own Logo on your products? A3: Yes. Q4: What is the Terms of Payment? A4: T/T, Western Union. Q5: Can you offer Form A or Form E or C/O ? A5: Yes, no problem, we can apply for it from our local government. Q6: How is the delivery time ? A6: It depends your order quantity and it normally takes 3-20 days . Q7: How long is the service life ? A7: It is 20-30 years. Q8: How long is the warranty ? A8: Within one year from the sale date, if there are any accessory problems,
you just provide the photos of damaged accessory, then we will provide free accessory.
According to the number of products, we will provide easily damaged accessories for free.
We also can provide technical support if you need. You're welcomed to contact us for any questions.
