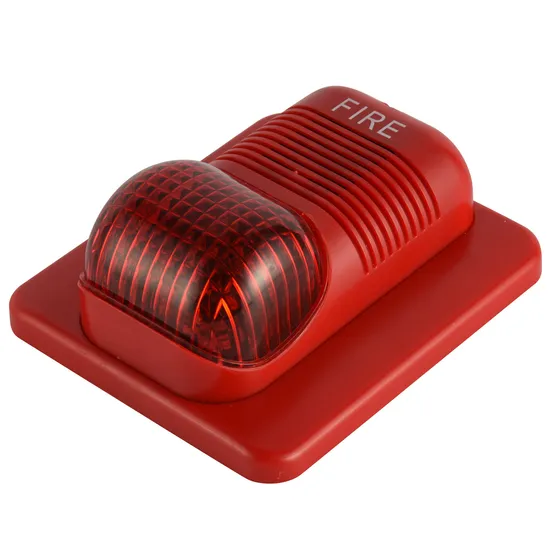

Sounder for Conventional Fire Alarm System

Product Description

Specification

Product name	Sounder for Conventional Fire Alarm System
Model	ES-F1
Size	185x130x70(mm)
Working voltage	DC 20~30Vdc
Alarm current	95mA
Sound pressure	>=100db/1m
Audio source	1.The ambulance voice 2.the police sound 3.the fire ambulance voice (freely adjustable)
Ligh flash cycle	>=1.2WS with 2 seconds cycle
Humidity	<=95%RH
Working temperature	-10ºC~+55ºC
Installation Way	Wall hanging
Alarm indicator	Red LED Light
Color	Red
Weight	0.25kg

Sounder for Conventional Fire Alarm System
Related Product
FAQ Q:Can I have a sample order?
A:Yes, we are willing to offer trial sample order to you for quality test. Mixed samples are acceptable.
Q: What is the lead time?
A:Sample needs 1-3 working days, mass production time needs 10-15 working days for order less than 5000pcs.

Q: Do you have any MOQ limit?
A:EXW MOQ is 100pcs under blank box.

Q: How do you ship the goods and how long does it take arrive?
A:The sample will be sent to you by optional shipping service (couriers, air, and sea). The delivery time depends on the shipping service.

Q:How will we proceed the order if I have logo to print?
A:Firstly, we will prepare artwork for visual confirmation. If the color and position are right, we would make sampling firstly from silk print factory and take picture for your second confirmation before mass production.

Q: Does alarm panel work with any sensor?
A:The alarm panel can work with all dry contact wired detectors and wireless detector, including almost all
of the wireless sensors from Chinese manufacturers. The wireless encode and decode is EV1527 or our wireless sensors.
