Manufacturer RF Universal Remote Control Support Customize Wireless Remote Control (WRC-04)

Product Description

1, Product Name: The new four key remote control
2, Operating frequency: 315MHz, 433MHz and other optional frequency voltage: 12V
3, Current work: ≥ 12mA
4, Transmitting power: ≤ 15mW
5, Firing distance: 100 meters
6, Transfer rate: 300Hz --- 60kHz
Product Description:

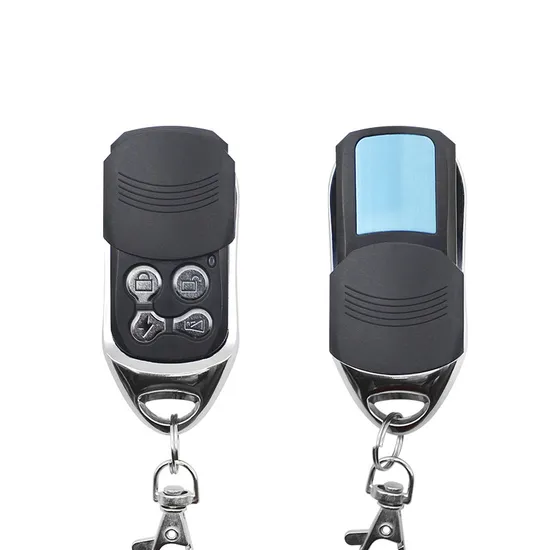

Universal Remote Control, Wireless Remote Control, wrc-02
This product is a new four-button remote control button plating, metal frame, elegant style and unique. 2262/2260/1527/2240/301 and other compatible chips inside-the-art circuit design and use of SAW frequency stabilization, high Sensitivity, high stability and low power consumption, and other characteristics.
The main applicable to the automobile, motorcycle anti-theft device, a variety of domestic / commercial anti-theft alarm, industrial automation, to receive a variety of controllers
Use steps and methods:
1, Formatting: press and hold "A" and"B" buttons together -LED will flash 3 times. Continue to hold down the'A"button and release "B" button.Push "B" button 3 times, Led will start flashing Non-stop,cleared. (Please note:during the deletion procedure,make sure to keep the"A" button pressed the whole time)
L 2, copy:left hand with the original remote control, right hand with our handcuff remote control, two remote control as close as possible.At the same time press the two remote control (the copies of your original remote control and we remote control) of the first key, about 2seconds after the LED light fast 2 flashes-1 seconds after the flash 3-1 seconds again under the lamp light, long after the let go before you press the study after a successful key, light show long on, indicating that the original first button on the remote control code has been our for kao replication in the remote control.
The same method in turn copy the second key,the third key...It's like pushing.
If the copy is successful, the remote control function after the copy is the same as the remote control button function that is matched.
3. Recovery: When you accidentally clear the code of the remote control, you can press the bottom two keys of the remote control at the same time,and the LED light will flash quickly. After you release the key, press any key again and the light will turn on long, which indicates that the code of the remote control has been restored.
Be sure to clear the existing code of the copy controller before copying it using our copy controller.
