T Type Automatic CNC Surface Grinding Machine
Basic Info.
Model NO.
BoBo-7386
Type
Surface Grinding Machine
Processing Object
Crank Shaft
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
End Cylindrical Grinder
Precision
High Precision
Certification
CE
Condition
New
Color
Customize
Usage
Grinding
Pressure
3 MPa
Work
4 Kw
Work Space
420*820*420
Transport Package
Wood
Specification
5700X1400X1400
Trademark
BoBo
Origin
China
Production Capacity
Cutomize
Packaging & Delivery
Package Size
270.00cm * 195.00cm * 200.00cm
Package Gross Weight
2700.000kg
Product Description
Product DescriptionThis advanced CNC grinding machine is designed to efficiently process a wide range of flat and complex contoured surfaces. The machine features a hydraulically driven longitudinal worktable with electric step-controlled feed for precise movement.
The high-precision spindle is equipped with a matched set of rolling bearings. These bearings undergo rigorous measurement and preload selection before being assembled in a temperature-controlled environment. A labyrinth seal ensures optimal protection against contaminants, extending bearing life and guaranteeing superior surface finish.

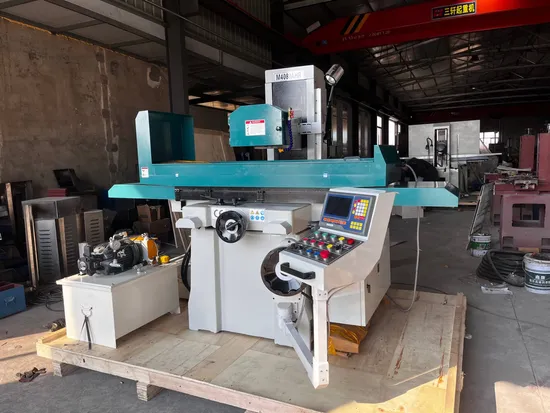

Detailed Photos
Product Parameters
| Table size (width * length) | mm | 400*800 |
| Maximum grinding size (width * length * height) | mm | 420820420 |
| Maximum longitudinal travel of the worktable | mm | 820 |
| T-slot of the worktable (number of slots * slot width) | mm | 3*14 |
| Maximum distance from the grinding wheel spindle center line to the worktable surface | mm | 580 |
| Vertical feed handwheel feed | mm/rev, mm/div | 2.0/rev, 0.01/div |
| Horizontal feed handwheel feed | mm/rev, mm/div | 5.0/rev, 0.02/div |
| Feed per feed | mm | 0.01-0.07 |
| Spindle motor | kW | 4 |
| Working pressure | MPa | 3 |
| Oil tank capacity | L | 100 |
| Grinding wheel spindle speed | rpm | 1440 |
