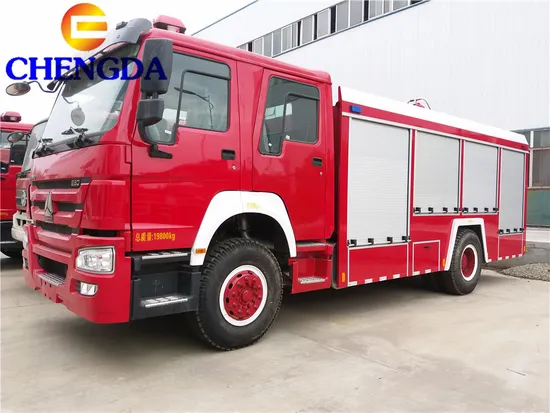

Chinese Brand New Sinotruck HOWO 4X2 8-10tons Fire Fighting Trucks for Sale

Product Description

Chinese Brand New Sinotruck Howo 4x2 8-10tons Fire Fighting Trucks For Sale Chengda group was established in 2005,which is one of the qualified manufactures of various types of trailers.We can provide many kinds of trailers and can be manufactured as special design As the A-agent of SINOTRUK. Welcome to contact us!

Truck Model		ZZ1167M4611W
Truck Brand		SINOTRUK-HOWO
Dimension(Lx W xH)(unloaded)(mm)		8377mm×2496mm×3048mm
Wheel base (mm)		4600
Max speed(km/h)		≥90km/h
Loading Weight(kg)		16000
Tank capacity:		6000kg water+2000kg B type foam
Fuel tanker capacity (L)		300
Minimum turning diameter		17m
Minimum ground clearance (under rear axle):		260mm
Engine Model	Fuel type	Diesel
	Horse Power, max(kw/rpm)	266hp
	Emission	EURO II
	Model	WD615.62 ,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
	Auxiliary brake	Egine exhaust brake
Color	The main color is fireman's red with white rim outer ring.
Tyre	12R22.5
	6+1 spare
Cab	1.Rated passengers (including driver):6 seats
	2.Structure: Forward control four-door conjoined cab of all steel frame welding unibody construction.
	3.Seat set: 2 persons in front row and 4 in rear row. The rear row seats are equipped with 4 air breathing apparatus holders and suspension protective device. The safety barriers are about 1.2m high in the front.
	4.Dumping gear: double-cylinder hydraulic turnover mechanism
	5.Passenger indoor equipment: in addition to the original equipment, it is equipped with 1000W alerter, turning warning light switch, PTO switch, attached light switch and indicator light.
	6.Alarm lamp: a lightbar is mounted on the top of the cab.
Tank	Tank capacity
	Water tank carrying capacity: 6000kg
	B type foam tank capacity: 2000kg
	Material
	The water tank is welded together by high quality carbon steel (high-tech anti-rot material with guarantee period of 10 years).
	The foam tank is welded together by high quality carbon steel (high-tech anti-rot material with guarantee period of 10 years).
	Structure of water tank: The water tank is of welded structure. The front and rear close plates, its two side walls and the vertical and horizontal shifting plates are all equipped with trapezoid ribs to increase strength. There is also maintenance manhole and anti-absorbing water vortex turbulence structure.
	There is one inlet opening on the top of the tank. The tank cover has quick locking and opening device.
	There is one 80mm overflow tube valve structure on the tank top.
	One fluid level indicator
	One drain outlet
	Structure of B type foam tank
	One B type foam filling port is on the tank top.
	One air outlet is on the tank top.
	One drain outlet is at the bottom of the tank.
	One fluid level gauge
Pipeline system	(1),Water absorption pipeline:
	One Φ150mm in-tank water absorption pipeline system.
	One Φ150mm outer water absorption pipeline system.
	(2),Foam pipeline:
	The foam feed pipe is stainless steel tube laying in the tank.
	(3),Water injection pipeline
	There are two Φ80mm buckles on both left and right sides of the carriage to the water injection pipeline in the tank.
	There is one Φ65mm water pump in the pump room to the water injection pipeline and control valve in the tank.(4)Water outlet pipeline:
	There is one 100mm water outlet fire monitor pipeline and control valve.
	There are two Φ80mm water outlet pipelines and control valves on both left and right sides of the pump room.
	(5),Residual water draining pipeline:
	There is one Φ18mm residual water draining pipeline and control valve on the bottom of the water pump.
	(6),Cooling water pipeline:
	Cooling water pipeline and stainless steel ball valve are equipped tor PTO to deal with all kinds of complicated situations.
	(7),Blow-off line
	There is one Φ40mm blow-off line and control valve at the bottom of the water tank.
	There is one Φ40mm blow-off line and control valve at the bottom of the foam tank.
PTO	Type: Sandwich type
	Operation: the magnetic valve, air control and control position are on the dash board in the cab with indicator lamps to show engagement and disengagement of PTO.
	Cooling mode: forced adjustable water cooling.
	Lubricating method: splash lubrication
Storage compartment and pump room	Material: The main skeleton is of steel sectional material and the equipment rack is of Luminal alloy sections. The interior plates are made of 1.5mm aluminum alloy checkered plate and the interior bottom plate is of 2.5mm aluminum alloy checkered plate.
	Structure: Adopting steel frame and special connection structure of Luminal alloy section, the storage compartment has enough space to place equipment; the partition space is adjustable to place equipment and easy to access. Valves are installed at proper position in the carriage for parts to be frequently checked; open or movable plates are also installed at other positions in the carriage for inspection.
	Rolling door: All storage compartments and pump chambers adopt rolling doors with locks. The handles and locks are sturdy and durable, and they all have passed the water sealing test.
	Turning plate pedal: it is of steel frame covered with Luminal alloy checkered plates and adopts air spring, safe and reliable.

We will select the most suitable core components to achieve the best use effect according to your needs.
Our company was founded in 2005. With high standard machinery and automation equipment,we have established a long-term business relationship with China heavy truck/shackleman/FAW/Dongfeng truck company.In addition to the mature after-sales service system ,we can also meet the different needs of customers. We provide all kinds of trailers, such as heavy-duty low bottom semi-trailer, flat container semi-trailer, skeleton container semi-trailer, side wall semi-trailer, container semi-trailer, dump truck trailer, bulk cement tank truck trailer, fuel tank truck semi-trailer, stainless steel tank trailer,and can be manufactured as the special mark of SINOTRUK a agent.
Our company has received many customers from many different countries in these years.We all have a long-term and in-depth cooperation.
Recently, our company has got many certificates in our areas, with more than 15+ years product and exports experience. At the same time, our company continues to innovate for greater and longer progress.
FAQ 1. who are we?We are based in Shangdong, China, start from 2015,sell to Africa(70.00%),Southeast Asia(10.00%),Central America(10.00%),South America(4.00%),Mid East(2.00%),Eastern Asia(2.00%),South Asia(2.00%). There are total about 11-50 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment.3.what can you buy from us?Flatbed Semi Trailer,Low Bed Semi Trailer,Cement Tanker Trailer,Fuel Tanker Semi Trailer,Dump Semi Trailer and so on.4. why should you buy from us not from other suppliers?CHENGDA GROUP with our own Manufacturer established in 2005. With more than 15 years trailer and truck export experience for trailers, tank trailers, Sinotruk and FAW truck, our main market is Africa, South America and Southeast Asia countries.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDU;Accepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;Language Spoken:English,French
